hen it comes to programming, many think it difficult. However, KEYES group issues a smart RV kit to cope with this problem.
This is low cost, easy-to-build and open source programming kit-----smart RV.
It integrates smart home and robot car. In addition, it helps you absorb the knowledge of programming like electronics, control logic and computing and science.
In compliance with the tutorial, you can create your own robot by boards, slot connection and wiring. In the assembly process, the detailed projects will guide you to learn the working principle of sensors and modules.

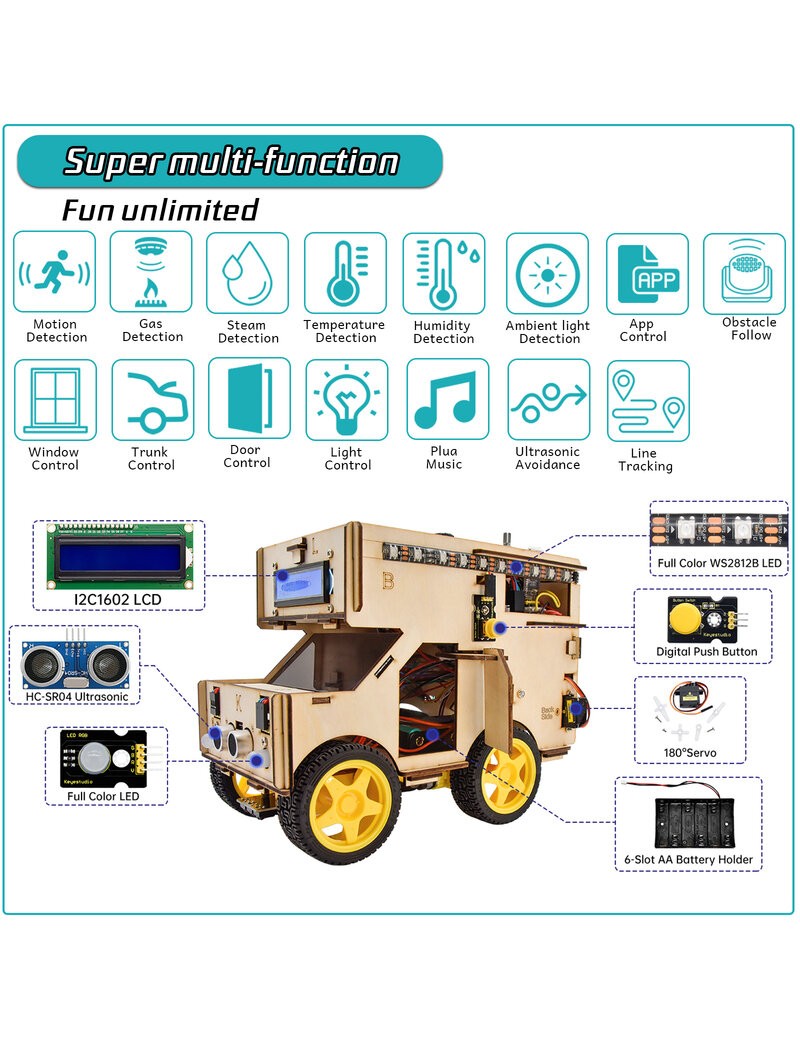

What’s more, it a has temperature humidity sensor and an LCD display except LED, line tracking sensor, ultrasonic sensor, Bluetooth module and motor driving modules.
Should you are interested in STEM and code programming, you can customize your RV by altering code and adding extra modules. That sounds entertaining, right? Let’s get started

• Multi-purpose function：obstacle avoidance, line tracking, Bluetooth control, ultrasonic follow, smart sensation and so on.

• Easy to build：Slot connection and without soldering circuit

• Novel style：Adopt strong wood board, acrylic board, RGB and lcd1602 modules.

• High extension：configure motor driving chip, preserve IIC, UART and SPI port and expand other sensor and module.

• Basic programming learning：use C language and code


• Working voltage: 5v
• Input voltage: 7-12V
• Maximum output current: 3A
• Maximum power dissipation: 15W
• Motor speed: 200 rpm (4.5V)
• Motor driving form: TB6612 chip drive
• Ultrasonic sensing angle: <15 degrees
• Ultrasonic detection distance: 2cm-400cm
• Bluetooth remote control distance: 50 meters (measured)
• Bluetooth APP control: support Android and iOS system
• FEATURES:

• Arduino software
