ITEAD 3.2 TFT LCD Touch Shield

46,36 €
Tasse incluse

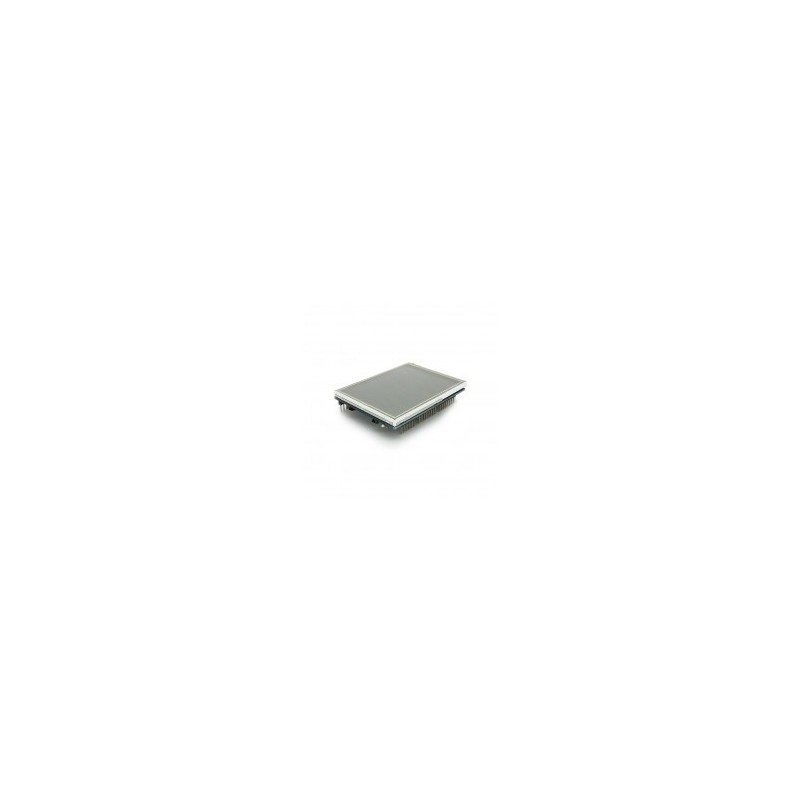

ITEAD 3.2 TFT LCD Touch Shield

Quantità

Arduino 3.2" TFT LCD Touch shield is an Arduino Mega compatible multicolored TFT display with touch-screen and SD card socket. It is available in an Arduino MEGA shield compatible pinout for attachment. The TFT driver is based on SSD1289 with 8bit data and 4bit control interface.

The Arduino 3.2" TFT LCD Touch shield can work with both 3.3V and 5V, so it can dispaly on Chipkit MAX32 as well.

  • Arduino Mega Shield compatible footprint
  • Arduino library UTFT support
  • TFTResolution : 240 x 320 pixels
  • Size : 3.2"
  • Colors : 262K
  • Backlight : LED
  • Driver IC: SSD1289

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.

Version1.0
Compatible Mainboard
  • Arduino MEGA
  • ChipKit MAX32
  • Iteaduino ADK
Shield Functions
  • Display
  • Storage
Board Size80mm x 58mm
Operation Level
  • Digital 3.3V
  • Digital 5V
StackableNo
ModelIM120417021
AccessoriesNo
Weight70.00g
IT-IM120417021
