Mini Illuminated Momentary Pushbutton - Blue Power Symbol

2,06 €
Tasse incluse

Mini Illuminated Momentary Pushbutton - Blue Power Symbol

Quantità
Ultimi articoli in magazzino

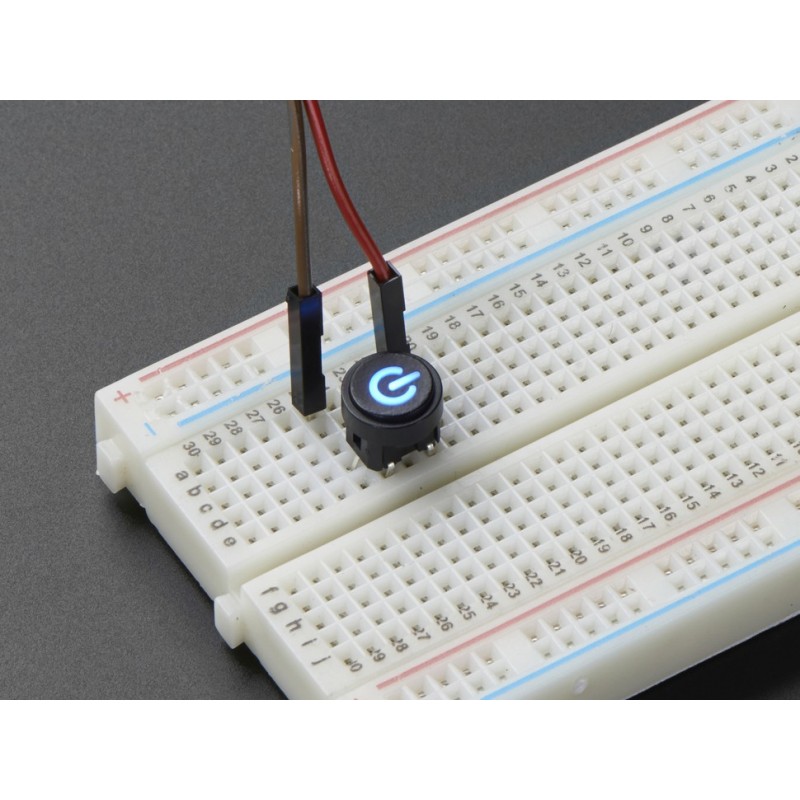

  • This Mini Illuminated Momentary Power Button it an adorable breadboard-friendly tactile switch that has a built-in LED. It provides a simple way to add a tactile switch and a colorful universal power symbol to your project.

    The tact switch is about the same size as 6mm tactile switches and can snap into a breadboard. There are an additional two pins that connect to the anode and cathode of a small LED that shines through the top.

    Note that this is a momentary button, not a on-off switch! Also, the LED is not connected to the switch in any way, and does not include a resistor. You'll need to add your own ~1K resistor and control the LED with a microcontroller pin or whatever you like.

    This is the Red version of this button - we also sell it in Blue!

  • Technical Details

    • Product Diameter: 9.8mm / 0.4"
    • Product Height: 8mm / 0.3"
    • Voltage rating for tactile switch: 12V
    • Current rating for tactile switch: 50mA
    • Current rating for LED: ~10mA
    • Product Weight: 0.4g/0.0oz

    TB2q7AhpFXXXXXoXFXXXXXXXXXX_%21%21643910

AF-3105
