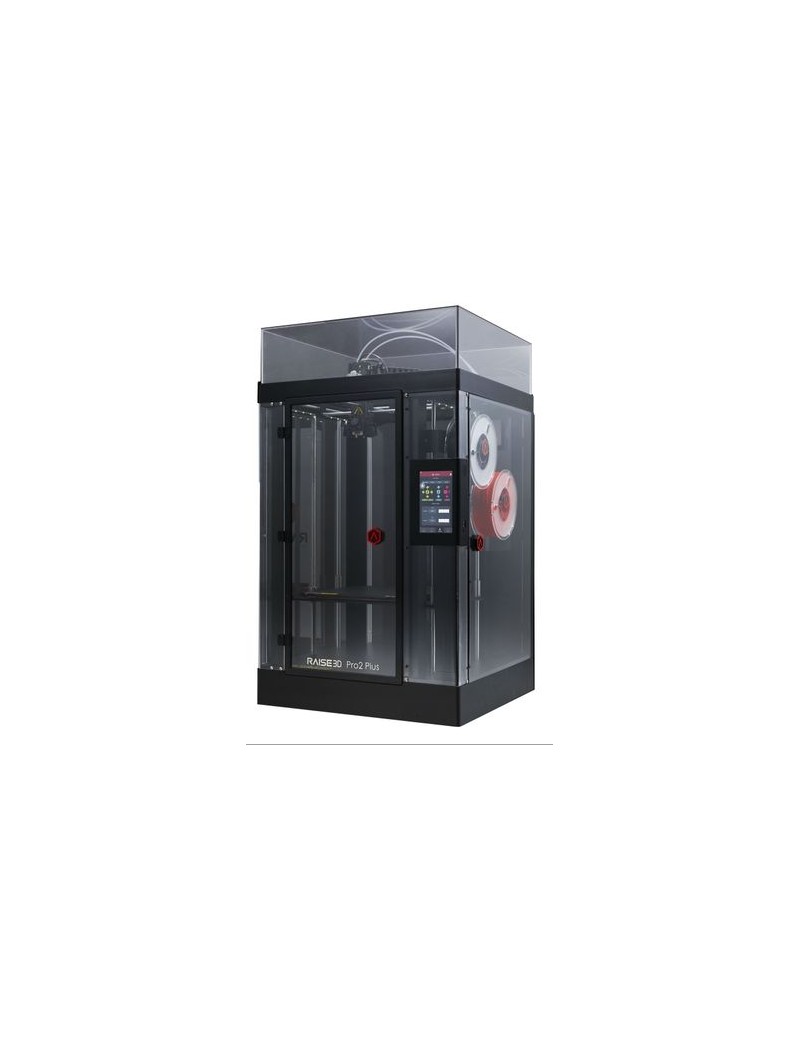

Raise3D Pro2 Plus – Large volume FFF / FDM Dual Extruder 3D Printer

Raise3D stands for development of high-quality, reliable and affordable 3D printers. Realize components in convincing quality with this Raise3D Pro2 Plus Dual Extruder 3D printer. Furthermore, you can use this 3D printer to produce small series and prototypes quickly and inexpensively. In contrast to the Pro2, the Plus variant offers a higher building height by 30 cm in the Z direction – now 60,5 cm high. Enter now into the professional Additive Manufacturing.

The most relevant new features of the Raise3D Pro2 Plus are:

• FFF / FDM Dual Extruder 3D printer
• Optimized extruder head with improved nozzle
• Precise electronic control of the build platform
• Built-in filament sensor
• Silicone print bed for high temperatures
• Aluminum magnetic bed with comfortable 4 + 9 point lock system
• Safe and environmentally friendly thanks to air filter

Further optimizations:

• Built-in camera
• Optimized Nozzle
• Upgraded hot-end
• Very extensive accessories
• Improved factory calibration
• High quality optical end stops
• Software controllable active cooling fan
• Massive build space: 305 x 305 x 605 mm

High-quality 3D printing

You will be impressed by the Raise3D Pro2 Plus. Your 3D prints are impractical, complicated and the finished parts are of inferior quality? That was yesterday. The Raise3D Pro2 Plus convinces with many smart functions. There are currently very few 3D printers on the market that combine all the crucial functions in one device. And if so, then these devices are many times more expensive than the Raise3D Pro2 Plus.

This 3D printer can be easily operated through its 7-inch color touch display. Surely you can use your smartphone? If so, you can handle the interface of the Raise3D Plus. By using the simple controls, you have your 3D printer always under control. Bring your digital masterpieces to life now.

Thanks to its enormous space, you can also produce very large objects and prototypes. Your components can reach an edge length of 305 x 305 x 605 mm. On top of that, the building chamber of this 3D printer is fully enclosed. This allows you to process more sophisticated materials such as ABS, HIPS, PET-G, PLA+, PP and ASA. Heat the build platform up to 110 ° C and the extruder up to 300 ° C. Realize your creative ideas now.

Raise3D Pro2 Plus offers an open system and can work with a variety of materials from most third-party manufacturers. The filaments only require a 1.75 mm diameter. Determine which filament from which supplier you use.

Improved dual extruder

• Precise control of the build platform
• Optimized extruder head with increased torque output and dual gear drive
• Optical filament sensor - This will show you and immediately stop the 3D printer when the filament runs out. After reloading, you can simply restart working.

Thanks to the dual-extruder, you can make objects from two different filaments, materials or with support material. If you process PVA or HIPS filament in the second extruder, you can realize very complex components with overhangs. Simply dissolve the support filament after the finished 3D printing and you will get a convincing result.

New 3D printing bed

Now the Raise3D Pro2 Plus works with a new heating bed made of silicone. This increases the adhesion of your components on the build platform. The substrate of the construction platform consists of a magnetic aluminum profile. This is equipped with an improved 4 + 9 points lock system.

Air filter for improved air quality

Clean air is important to us all. This is true even if we talk about 3D printers. With the Raise3D Pro2 Plus, the air in your environment remains clean and free of harmful substances. The integrated air filter cleans the exhaust air.

Additional updates:

• Improved factory calibration
• Integrated camera
• High quality optical end stops
• Improved nozzle design
• Hot-end upgrade
• Very extensive accessories
• Software controllable active cooling fan
• Large building volume: 305 x 305 x 605 mm

Delivery:

• 1x Raise3D Pro2 Plus 3D printer with dual extruder
• 2x spools of PLA filament (1.00 kg each)
• 2x metal bars for cleaning the hot ends
• 1x tweezers
• 1x set of Allen keys
• 1x Scratcher
• Various fuses
• 1x power cable
• Printed instructions

SCHEMATIC

PRINTER
Print Technology: FFF
Build Volume (W×D×H): 12×12×23.8 inch / 305×305×605 mm
                                     11×12×23.5 inch / 208×305×605 mm*
Machine Size (W×D×H): 24.4×23.2×29.9 inch / 620×590×760 mm
Print Head: Dual-head with electronic lifting system
Filament Diameter: 1.75mm
XYZ Step Size: 0.78125, 0.78125, 0.078125 micron
Print Head Travel Speed: 30 - 150 mm/s
Build Plate: Heated aluminum build plate with magnetic holding
Max Build Plate Temperature: 110 ºC
Build Plate Material: Silicone
Build Plate Leveling: Pre-calibrated leveling
Supported Materials: PLA / ABS / HIPS / PC / TPU / NYLON / TPE / FLEX / PETG / Bronze-Filled / Wood-Filled / Carbon Fiber Enforced
Nozzle Diameter: 0.2/ 0.4/ 0.6/ 0.8mm
Max Nozzle Temperature: 300 ºC
Operating Sound: 50 dB
Connectivity: Wi-Fi, LAN, USB port
Monitoring: Live camera

* When you are printing with dual material.

ELECTRICAL
Power Supply Input: Universal 100-240 VAC, 50/60 Hz
Power Supply Output: 600 Watts, 24 VDC

SOFTWARE
Slicing Software: ideaMaker
Supported File Types: STL, OBJ
Supported OS: WINDOWS/ IOS/ LINUX
Machine Code Type: GCODE

PRINTER CONTROLLER
User Interface: 7 inch Touch Screen
Network: Ethernet 802.11b/g/n Wifi 2.4GHz/5GHz
Resume Print after Power Outage: Second Generation
Screen Resolution: 1024*600
Motion Controller: ARM Cortex M7.400MHZ FPU
Logic Controller: Freescale imx6, Quad core 1Ghz ARM processor
Memory: 1GB
Onboard Flash: 8GB
OS: Embedded Linux
Ports: SD-Card*1, USB 2.0*2, Ethernet*1
