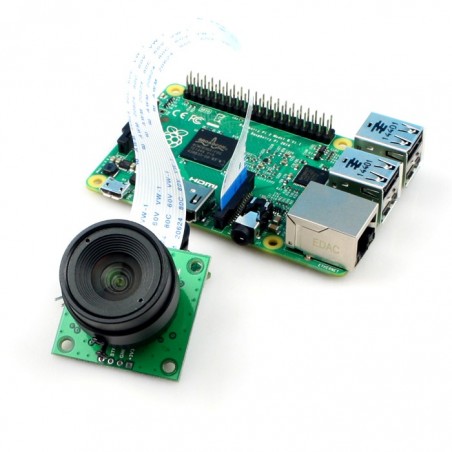

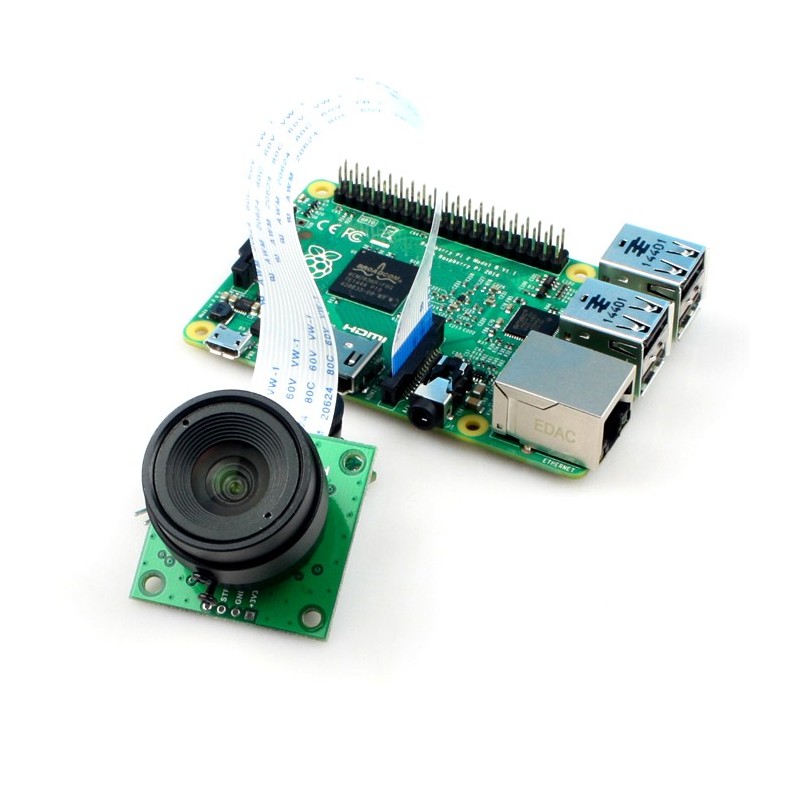

OV5647 Camera for Raspberry Pi

43,92 €
Tasse incluse

OV5647 Camera for Raspberry Pi

Quantità
Add to Compare
Add to Wishlist

  • Introduction

In order to meet the increasing need of Raspberry Pi compatible camera modules. The ArduCAM team now released a revision C add-on camera module for Raspberry Pi which is fully compatible with official one. It optimizes the optical performance than the previous Pi cameras, and give user a much clear and sharp image. Also it provides the FREX and STROBE signals which can be used for multi-camera synchronize capture with proper camera driver firmware.

It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data. The camera is supported in the latest version of Raspbian, Raspberry Pi’s preferred operating system

The board itself is tiny, at around 36mm x 36mm. The highlight of our module is that the Lens is replaceable compared to official one, making it perfect for mobile or other applications where size and image quality are important. It connects to Raspberry Pi by way of a short ribbon cable. The camera is connected to the BCM2835/BCM2836 processor on the Pi via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor. This bus travels along the ribbon cable that attaches the camera board to the Pi.

The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video.

  • Features
  • High-Definition video camera for Raspberry Pi Model A/B/B+ and Raspberry Pi 2
  • Omnivision OV5647 sensor in a fixed-focus module with replaceable Lens
  • Lens holder: M12x0.5 , CS mount or C mount
  • 5MPixel sensor
  • Integral IR filter
  • Still picture resolution: 2592 x 1944
  • Max video resolution: 1080p
  • Max frame rate: 30fps
  • Support FREX/ STROBE feature
  • Size: 36 x 36 mm
  • 15 cm flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector
  • Pin Definition

Table 1 P1 Connector Pin Definition

Pin No. PIN NAME TYPE DESCRIPTION
1 DGND Ground Power ground
2 CAM_D0_N Output MIPI data lane0 negative output
3 CAM_D0_P Output MIPI data lane0 positive output
4 DGND Ground Power ground
5 CAM_D1_N Output MIPI data lane1 negative output
6 CAM_D1_P Output MIPI data lane1 positive output
7 DGND Ground Power ground
8 CAM_C_N Output MIPI clock negative output
9 CAM_C_P Output MIPI clock positive output
10 DGND Ground Power ground
11 POWER_EN Input Camera module power enable active high
12 LED_EN Input Reserved
13 SCL Input Two-Wire Serial Interface Clock
14 SDA Bi-directional Two-Wire Serial Interface Data I/O
15 +3.3V POWER 3.3v Power supply

Table 2 P2 Connector Pin Definition

Pin No. PIN NAME TYPE DESCRIPTION
1 +3.3V POWER 3.3v Power supply
2 DGND Ground Power ground
3 STROBE Output Strobe output
4 FREX input Frame exposure control

  • Lens Options

The Raspberry Pi camera shipped with default LS-40136 (M12x0.5 mount) and LS-6018 (CS mount), Lenses specification list as follows. Please contact us admin@arducam.com for more lens options.

AC-B0032
