Indoor Environment Monitoring Kit
Write your review
88,06 €
Tasse incluse
Indoor Environment Monitoring Kit | Weather Box Kit | Starter Kit for Arduino UNO R3 with PDF Guidebook and Code
"
We live in an environment amid air under a certain temperature and humidity. When the temperature is between 18 and 23 degrees Celsius and humidity is about 45-65%RH, we feel comfortable, while plants live well under 22-32? and 60-80%RH. It is important to keep a good environment for human and other creatures. Therefore,every government on the earth invests great quantity of manpower and financial resources in detecting and studying the environment. An effective method is to build a weather station. It can be a portal one, high-precision station, or one on the highway, in the forest and on the campus.
This Adeept weather box kit, or indoor environment monitoring kit, is suitable for beginners for Arduino, environment enthusiasts and geeks. It can not only detect basic values like temperature and humidity, but also air pressure, air pollution index, smog, flammable gas, and light existence. A large screen LCD12864 is included to print data, more modules like button, RGB LED, and buzzer added too. A variety of tutorials are provided for you to easily learn about Arduino. Software and hardware are both involved in this kit.
Features:
- Designed by Adeept. The weather box kit, or indoor environment monitoring kit, is suitable for beginners for Arduino, environment enthusiasts and geeks.
- It can not only detect basic values like temperature and humidity, but also air pressure, air pollution index, smog, flammable gas, and light existence.
- A large screen LCD12864 is included to print data, more modules like button, RGB LED, and buzzer added too. A variety of tutorials are provided for you to easily learn about Arduino. Software and hardware are both involved in this kit.
- Quick-responding technical support for free.
- Adeept Arduino UNO R3 is included.
Tutorials Link:
https://www.adrive.com/public/UkXfZz/AdeeptWeatherBox_V1_1.zip
In addition to providing the basic functionality of the weather box kit, we also offered a complete lessons to learn Arduino, electronics and programming.
Basic Lessons:
Lesson 1 Blinking LED
Lesson 2 Control An LED By Serial
Lesson 3 Upload The State Of A Button To PC
Lesson 4 Control An LED By Button
Lesson 5 Buzzer
Lesson 6 Music
Lesson 7 Control Buzzer By Button
Lesson 8 Change The Color Of The RGB LED
Lesson 9 Control RGB By Button
Lesson 10 Detection Of Light
Lesson 11 Control RGB By Photoresistor
Lesson 12 Control LCD12864 By SPI
Lesson 13 The Four Buttons Information Are Displayed On LCD12864
Lesson 14 The Photoresistor Information Is Displayed On LCD12864
Lesson 15 Upload The Information Of dht_11(Temperature and humidity) To PC
Lesson 16 A Simple Temperature & Humidity Monitoring And Alarm System(Via RGB)
Lesson 17 A Simple Temperature & Humidity Monitoring And Alarm System(Via Buzzer)
Lesson 18 The dht_11(Temperature and humidity) Information Are Displayed On LCD12864
Lesson 19 A Simple Temperature & Humidity Monitoring And Alarm System(On LCD12864,Via RGB&Buzzer)
Lesson 20 Upload The Information Of MQ_2(Flammable Gases) To PC
Lesson 21 A Simple Flammable Gases Monitoring And Alarm System(Via RGB)
Lesson 22 A Simple Flammable Gases Monitoring And Alarm System(Via Buzzer)
Lesson 23 The MQ_2(Flammable Gases) Information Is Displayed On LCD12864
Lesson 24 A Simple Flammable Gases Monitoring And Alarm System(On LCD12864,Via RGB&Buzzer)
Lesson 25 Set The MQ_2(Flammable Gases) Alarm Threshold By Four Buttons
Lesson 26 Upload The Information Of The Dust To PC
Lesson 27 The Dust Information Are Displayed On LCD12864
Lesson 28 Upload The Information Of The Barometer To PC
Lesson 29 The Barometer Information Are Displayed On LCD12864
Lesson 30 A Simple Clock(On LCD12864)
Lesson 31 Control LED By Processing
Lesson 32 Upload The State Of Four Buttons To Processing
Lesson 33 Upload The Information Of Photoresistor To Processing
Lesson 34 Control RGB By Processing
Lesson 35 Adeept Weather Box
Lesson 36 Adeept Snake Game

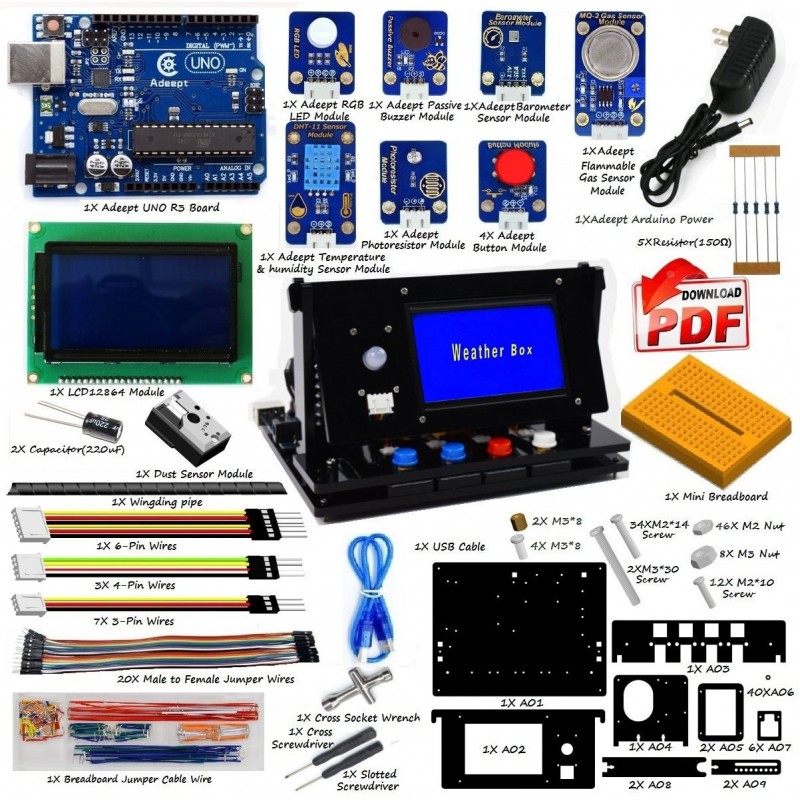

Package List:
1x Adeept Arduino UNO R3 Board
1x LCD12864 Module
1x GP2Y1010AU0F Module
1x Mini Breadboard
1x Adeept Passive Buzzer Module
1x Adeept RGB LED Module
1x Adeept Photoresistor Module
1x Adeept Barometer Sensor Module
1x Adeept DHT-11 temperature & humidity Sensor
1x Adeept MQ-2 Gas Sensor Module
4x Adeept Button Module
7x 3-Pin Wires
3x 4-Pin Wires
1x 6-Pin Wires
5x Resistor(150?)
2x Capacitor(220uF)
1x USB Cable
20x Male to Female Jumper Wires
1x Breadboard Jumper Wires
1x Cross Screwdriver
1x Slotted Screwdriver
1x Cross Socket Wrench
1x Wingding pipe
1x Adeept Power Supply
1x Weather Box Kit Acrylic Board
46x M2 Nut
8x M3 Nut
12x M2*10 Screw
34x M2*14 Screw
4x M3*8 Screw
2x M3*30 Screw
2x M3*8 Copper
"
AD-ADA018
Indoor Environment Monitoring Kit | Weather Box Kit | Starter Kit for Arduino UNO R3 with PDF Guidebook and Code
