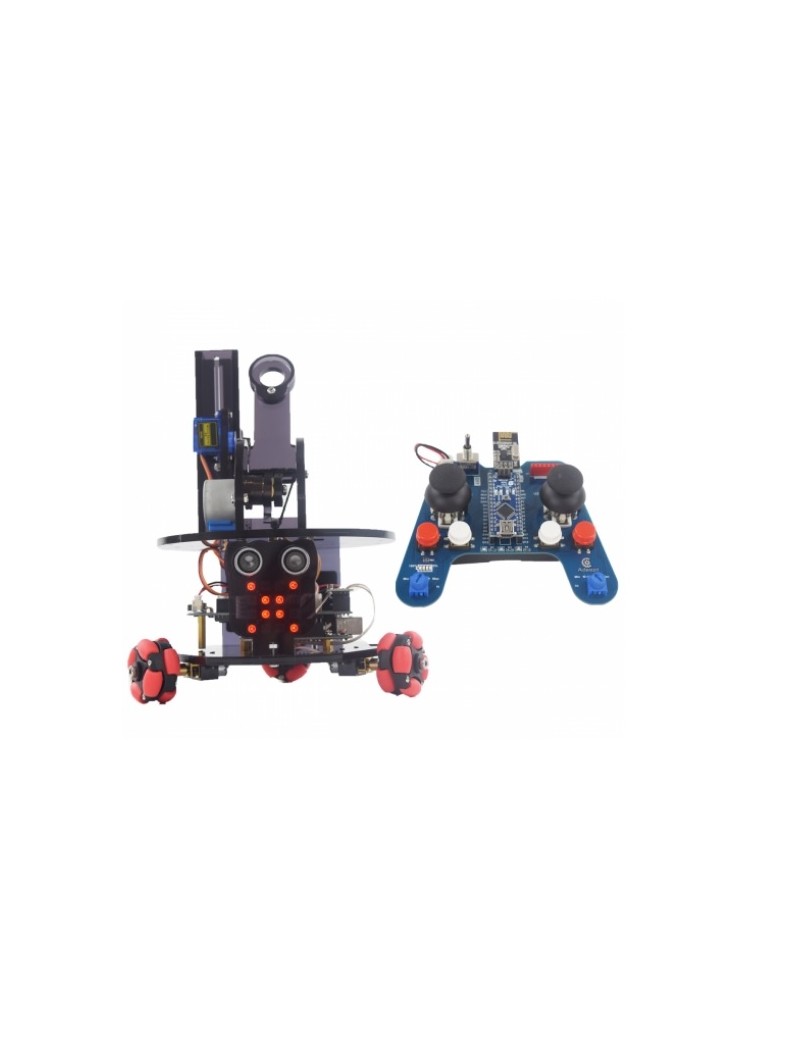

Three omnidirectional wheels are the driving ones in this smart robot car. They are installed radially symmetrically; each forms a 120-degree angle with another, and the roller is perpendicular with each wheel. The three wheels are no different in size and quality and driven by motors of the same power. You may control the stick on the remote control to make the car translate, go forward and backward, turn left and right, and whirl and so on. You can also make the car beep by pressing the button on the remote, make it drive automatically or use it as an ejector, etc.

Features:

• Designed based on Arduino UNO R3 and Nano.This is a STEM educational kit for beginners to get hands-on experience about programming, electronics and robotics knowledge.
• The entire system is divided into two parts, the Omnidirectional Wheels Smart Car and the Remote Controller. The communication between them is based on NRF24L01 2.4G wireless module.
• Rich functions - In remote control mode, it can go forward, backward, turn left, turn right and move parallel. It also has ultrasonic-based obstacle avoidance. Its top has a simple ejection device that automatically ejects the ball. It also has a face based on the WS2812 RGB LED that can display some simple status and expressions.
• Powerful technical support - Excellent Manual, Official forum and Quick reply E-mail
• Adeept Arduino UNO R3 and Nano are included.

Download Tutorials:
https://www.adrive.com/public/ED3yNn/Adeept_Omni-Direction-Wheel-Smart-Car-Kit-V1.0.zip

Package List:
1x Acrylic Plates
1x Adeept Arduino UNO R3 Board
1x Arduino Nano Board
1x Adeept Remote Control Shield
1x Ultrasonic Module
2x 18650x2 Battery Holder
1x 4*4 LED Dot Matrix
2x NRF24L01 Module
2x Adeept Motor Driver Module
1x Adeept Omnidirectional Wheel Drive Board
1x Servo
3x Omnidirectional Wheel
1x 28BYJ-48 Gear Motor
3x Geared Motor
3x Motor Holder
1x Mini USB Cable
1x USB Cable
2x 4-Pin Wires
1x Slotted Screwdriver
1x Cross Screwdriver
1x Rubber Band
3x Ball
1x Hex Wrench-1.5mm
1x Hex Wrench-2mm
1x Hex Wrench-3mm
6x M2 Nut-B
6x M2*10 Screw-B
2x M2 Nut
27x M3 Nut
2x M2*10 Screw
6x M3*4 Screw
10x M3*8 Screw
19x M3*12 Screw
2x M3*35 Screw
1x M4*14 Screw
4x M1.4*6 Self-tapping Screw
4x M3*10 Countersunk Head Screw
3x M3*3 Locking Screw
4x M3*6 Copper Standoff
2x M3*20 Copper Standoff
1x M3*30 Copper Standoff
1x M3*65 Copper Standoff
3x S8D3 Coupel
3x M4*18 Hexagon socket head cap screws
1x S12D5 Coupler
2x M4*4 Locking Screw
