• A 3018 - Mini-USB cable 1830cm
• A Hardware mounting kit (4 nuts and bolts (M3), 4 plastic spacers)

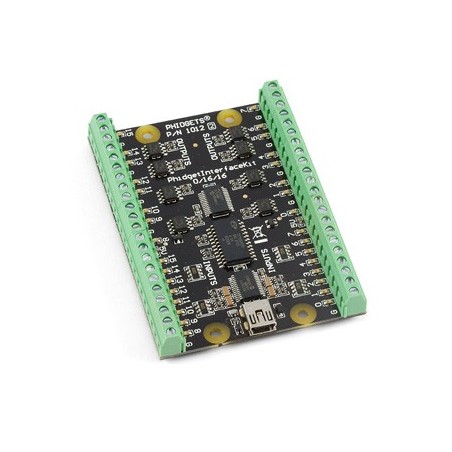

Digital Inputs

• The Digital Inputs are activated by an external voltage source, triggering on a wide voltage range - 4 to 30VDC. They provide built-in filtering, to eliminate false triggering from electrical noise. They can be used to convey the state of on/off devices, such as push buttons, limit switches, relays.



  Digital Outputs



  The Open Collector Digital Outputs can be used to directly control substantial devices, switching up to 30VDC at up to 2 Amps. The Output acts as a switch to ground, so the circuit you're switching will need an external power supply. Each output is protected from transient voltages typical when switching inductive devices - relays, solenoids, motors. The Outputs can be used to directly control devices requiring substantial power such as incandescent lights, high power LEDs, relays, solenoids, motors.



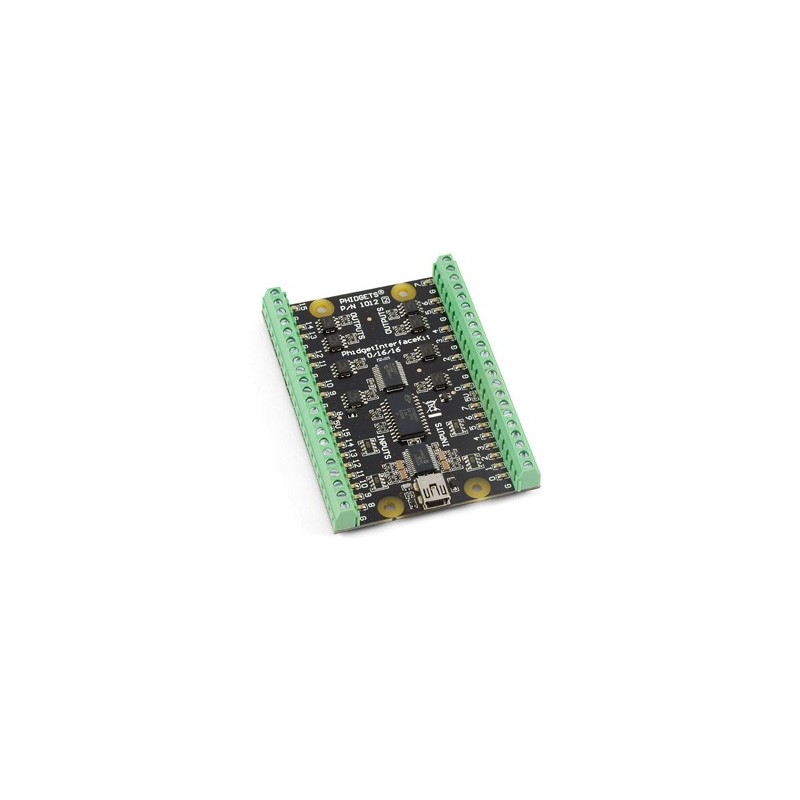

  Product Specifications



  Board

  API Object Name	InterfaceKit
  USB Voltage Min	4.6 V DC
  USB Voltage Max	5.5 V DC
  Current Consumption Min	14 mA
  Current Consumption Max	500 mA
  Available External Current	394 mA
  Recommended Wire Size	16 - 26 AWG
  USB Speed	Low Speed
  Operating Temperature Min	0 °C
  Operating Temperature Max	70 °C




  Digital Inputs

  Number of Digital Inputs	16
  Digital Input Impedance	10 k?
  Low Voltage Max (False)	900 mV DC
  High Voltage Min (True)	4.2 V DC
  Low Voltage Trigger Length Min	16 ms
  High Voltage Trigger Length Min	4 ms
  Digital Input Voltage Max	± 30 V DC
  Digital Input Update Rate	125 samples/s




  Digital Outputs

  Number of Open Collector Digital Outputs	16
  Series Resistance	200 m?
  Open Collector Voltage Max	30 V DC
  Digital Output Current Sinking Max	(per channel) 2 A
