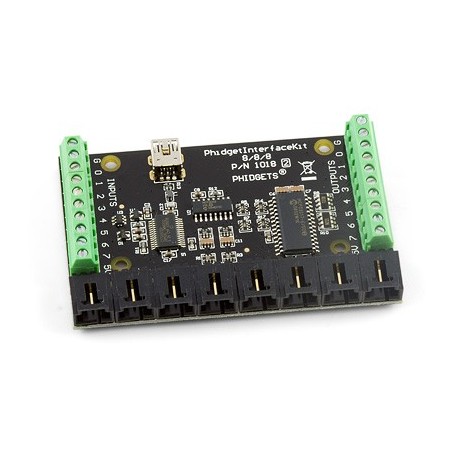

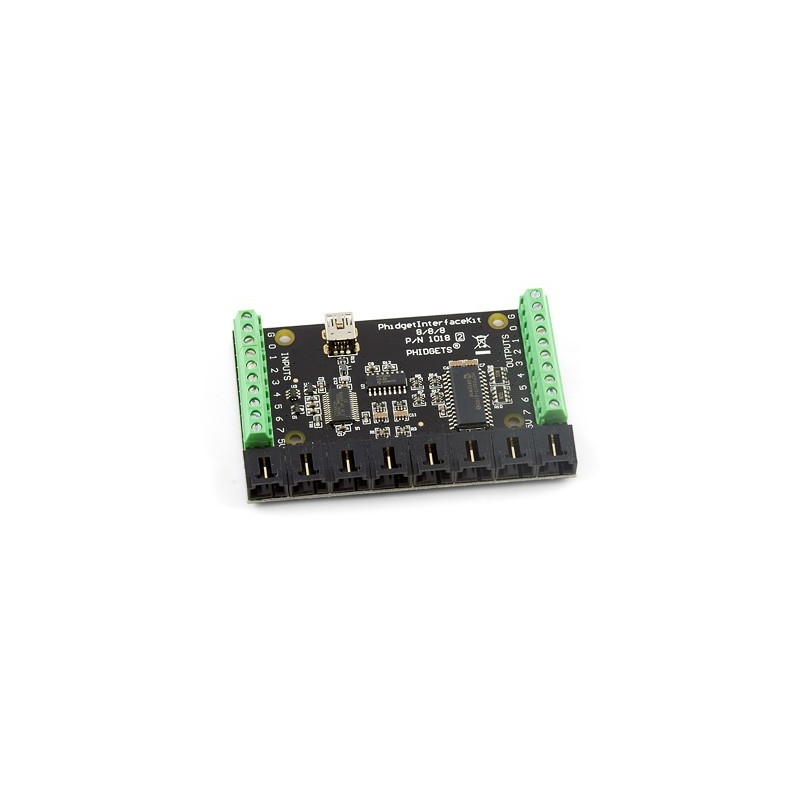

PhidgetInterfaceKit 8/8/8
Product Description
Analog Inputs
The Analog Inputs are used to measure continuous quantities, such as temperature, humidity, position, pressure, etc. Phidgets offers a wide variety of sensors that can be plugged directly into the board using the cable included with the sensor. For more information about these inputs and their connectors, have a look at the Analog Input Primer.
Sampling rates can be set at 1ms, 2ms, 4ms, 8ms and multiple of 8ms up to 1000ms.
Digital Inputs
The Digital Inputs have a Digital Input Hardware Filter to eliminate false triggering from electrical noise. They can be used to convey the state of devices such as push buttons, limit switches, relays, and logic levels.
Digital Outputs
The Digital Outputs can be used to drive LEDs, solid state relays (such as the 3052 SSR Relay Board), transistors; in fact, anything that will accept a CMOS signal.
Product Specifications
Board
| API Object Name | InterfaceKit |
| USB Voltage Min | 4.6 V DC |
| USB Voltage Max | 5.5 V DC |
| Current Consumption Min | 13 mA |
| Current Consumption Max | 500 mA |
| Available External Current | 487 mA |
| Recommended Wire Size | 16 - 26 AWG |
| USB Speed | Full Speed |
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 70 °C |
Analog Inputs
| Number of Analog Inputs | 8 |
| Analog Input Resolution | 10 bit |
| Input Impedance | 900 k? |
| Analog Input Voltage Min | 0 V DC |
| Analog Input Voltage Max | 5 V DC |
| 5V Reference Error Max | 0.5 % |
| Analog Input Update Rate Min | 1 samples/s |
| Analog Input Update Rate Max (4 Channels) | 1000 samples/s |
| Analog Input Update Rate Max (8 Channels) | 500 samples/s |
| Analog Input Update Rate Max (WebService) | 62.5 samples/s |
Digital Inputs
| Number of Digital Inputs | 8 |
| Pull-up Resistance | 15 k? |
| Low Voltage Max (True) | 900 mV DC |
| High Voltage Min (False) | 4.2 V DC |
| Low Voltage Trigger Length Min | 4 ms |
| High Voltage Trigger Length Min | 15 ms |
| Digital Input Voltage Max | ± 15 V DC |
| Digital Input Update Rate | 125 samples/s |
Digital Outputs
| Number of Digital Outputs | 8 |
| Series Resistance | 300 ? |
| Digital Output Current Max | 16 mA |
| Digital Output Voltage Min | 0 V DC |
| Digital Output Voltage Max | 5 V DC |
