Optical Dust Sensor - GP2Y1010AU0F
Write your review
10,98 €
Tasse incluse

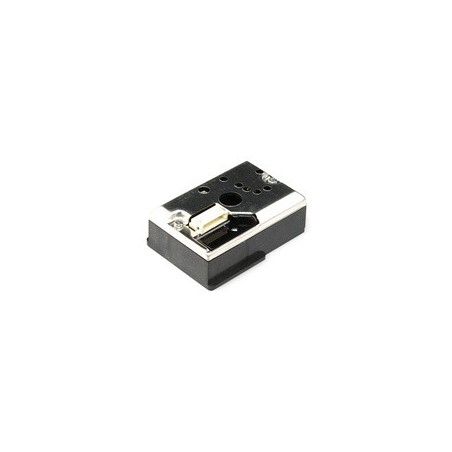

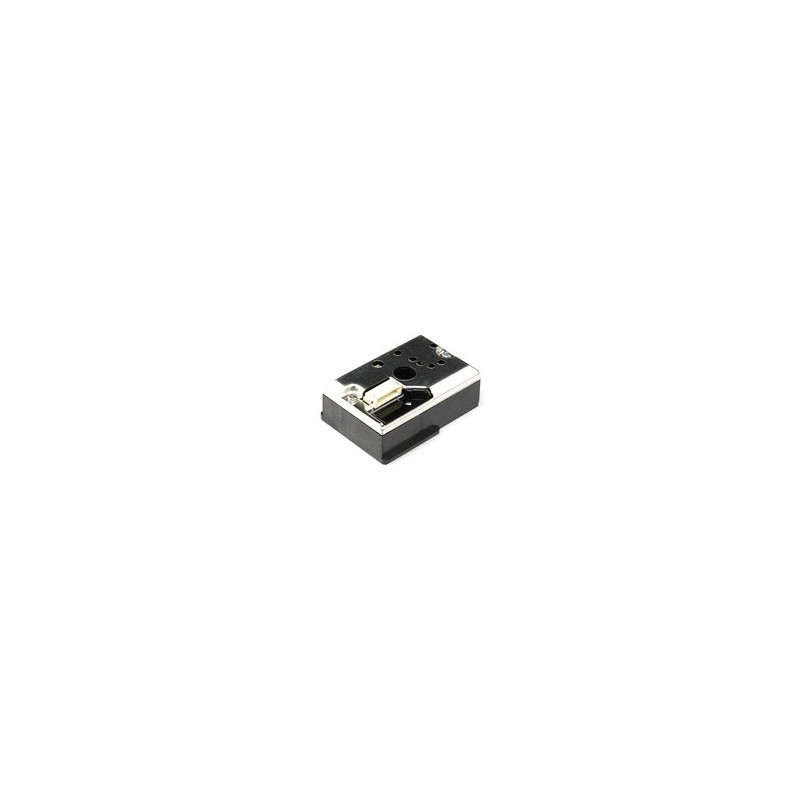

Optical Dust Sensor - GP2Y1010AU0F
Sharp optical dust sensor has an internal infrared diode and a phototransistor diagonally arranged. The diode projects light and the phototransistor detects the dark spots caused by the fine particles passing through. In addition to this feature, depending on the pulse pattern outputted you can check whether or not is smoke or dust.
This is the sensor you will need if you want to measure air particles, build an air purifier system, or detect certain particles. Includes a special cable to connect with other aplications.
This is the sensor you will need if you want to measure air particles, build an air purifier system, or detect certain particles. Includes a special cable to connect with other aplications.
Project 1: Environmental Monitoring System Based on OBLOQ-IoT Module
This product is mainly applied in electronic laboratory to monitor and control indicators such as temperature, humidity, light and dust, and timely upload them to the cloud data space to achieve remote monitoring and control of dehumidifier, air purifier, exhaust fan and dimmable light, etc. in the laboratory.
Hardware List:
DFRduino UNO R3 - Arduino Compatible
Gravity: UART OBLOQ – IOT Module (Microsoft Azure)
DHT22 Temperature and Humidity Sensor
Sharp GP2Y1010AU0F Compact optical Dust Sensor
Gravity: i2C BMP280 Barometer Sensor
Gravity: Analog Ambient Light Sensor For Arduino
LCD12864 Shield for Arduino
Quadruple relay module
APPLICATIONS
Detecting of dust in the air. Measure what's going on in the atmosphere.
Air purifier. Filter if high amount of particles are detected. Air conditioner system. Air monitor, publish enviromental air quality to the net and compare with your friends.SPECIFICATION
- Supply voltage: 5-7V
- Operating temperature: -10-65 Celsius degree
- Consumption current: 20mA max, 11mA typical
- Output of the sensor is an analog voltage proportional to the measured dust density, with a sensitivity of 0.5V/0.1mg/m3.
OPTIONAL PARTS
DOCUMENTS
SHIPPING LIST
- Sharp GP2Y1010AU0F Dust Sensor x1
- Cable x1
DF-SEN0144
Optical Dust Sensor - GP2Y1010AU0F
