VISHAY TSOP2438 Ricevitore Infrarossi, Remote Control, 38 kHz,
Write your review
1,70 €
Tasse incluse

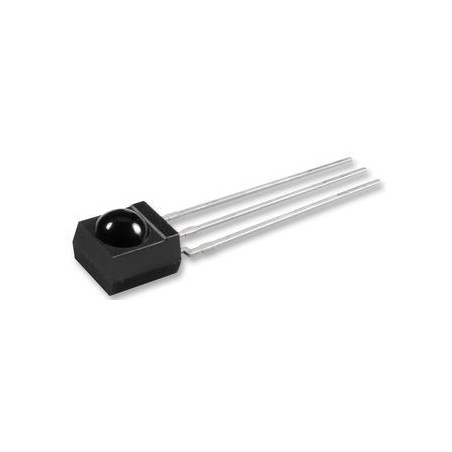

VISHAY TSOP2438 Ricevitore Infrarossi, Remote Control, 38 kHz, 45m, 45 °, 4.5 V, 5.5 V, 950 µA
The TSOP2438 from Vishay is a miniaturized IR receiver module for remote control systems. A PIN diode and a preamplifier are assembled on lead frame, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding. TSOP2438 is optimized to suppress almost all spurious pulses from energy saving lamps like CFLs, the AGC4 used in the TSOP2438 may suppress some data signals. This device widely used for remote controlling.
- Photo detector and preamplifier in one package
- Internal filter for PCM frequency
- Improved shielding against EMI
- Supply voltage range from 2.5V to 5.5V
- Transmission range of 45m
- Improved immunity against ambient light
- Carrier frequency of 38KHz
- Directivity of 45°
- Supply current of 950µA
- Operating temperature range from -25°C to 85°C
Applicazioni
Industriale
Specifiche del prodotto, documenti e molto altro ancora
- Frequenza Portante: 38kHz
- Corrente di Alimentazione: 950µA
- Direttività: 45°
- Imballaggio: Pezzo
- Intervallo di Trasmissione: 45m
- Temperatura di Esercizio Max: 85°C
- Temperatura di Esercizio Min: -25°C
- Sostanze Estremamente Preoccupanti (SVHC): To Be Advised
- Tensione di Alimentazione Max: 5.5V
- Tensione di Alimentazione Min: 4.5V
FA-4913097
6 Articoli
VISHAY TSOP2438 Ricevitore Infrarossi, Remote Control, 38 kHz, 45m, 45 °, 4.5 V, 5.5 V, 950 µA
