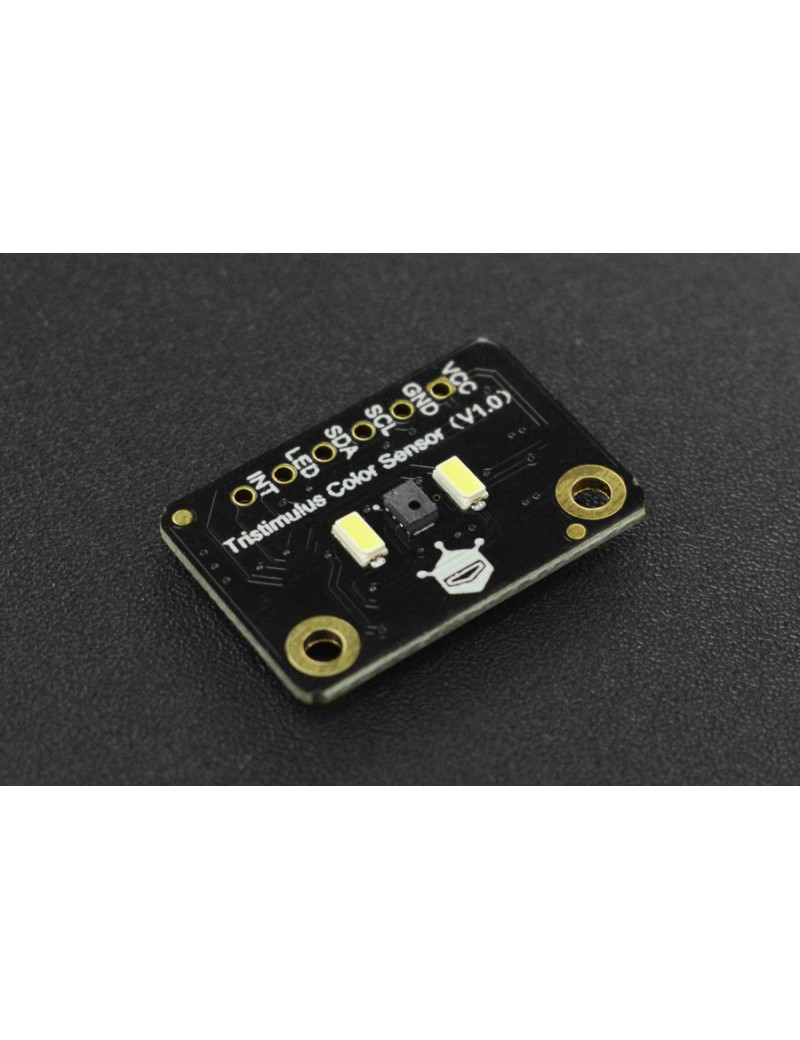

Fermion: TCS3430 Tristimulus Color Sensor (Breakout)

13,42 €
Tasse incluse

Fermion: TCS3430 Tristimulus Color Sensor (Breakout)

Quantità

INTRODUCTION

DFRobot TCS3430 XYZ Tristimulus Color Sensor employs the new generation of TCS3430 spectral sensor IC launched by the well-known AMS company. It features advanced digital ambient light sensing(ALS) and CIE 1931 tristimulus color sensing(XYZ). Each of the channels has a filter to control its optical response, which allows the device to accurately measure ambient light and sense color. These measurements are used to calculate chromaticity, illuminance, and color temperature, all of which are used to support various potential applications.

You can learn more about the CIE 1931-XYZ system here:

Fermion:TCS3430 Tristimulus Color Sensor(Breakout)

Board Overview

FEATURES

  • XYZ Tristimulus Filter
  • Capable of ±10% illuminance and correlated color temperature accuracy
  • Wide dynamic range and high sensitivity
  • Programmable gain and integration time

APPLICATIONS

  • Color detection
  • Brightness detection
  • White balance detection
  • Color temperature measurement

SPECIFICATION

  • Power Supply: 3.3V~5V
  • Operating Current: <5mA
  • LED Operating Current: <15mA
  • I2C Address: 0x39
  • Operating Temperature Range: -30℃~85℃
  • Dimension: 22*15mm/0.87*0.59”

DOCUMENTS

SHIPPING LIST

  • Fermion:TCS3430 Tristimulus Color Sensor(Breakout) x1
  • 2.54-6P Black Single Row Pin Header x1
DF-SEN0403
