Weight Sensor (Load Cell) 0-500g
Write your review
20,13 €
Tasse incluse

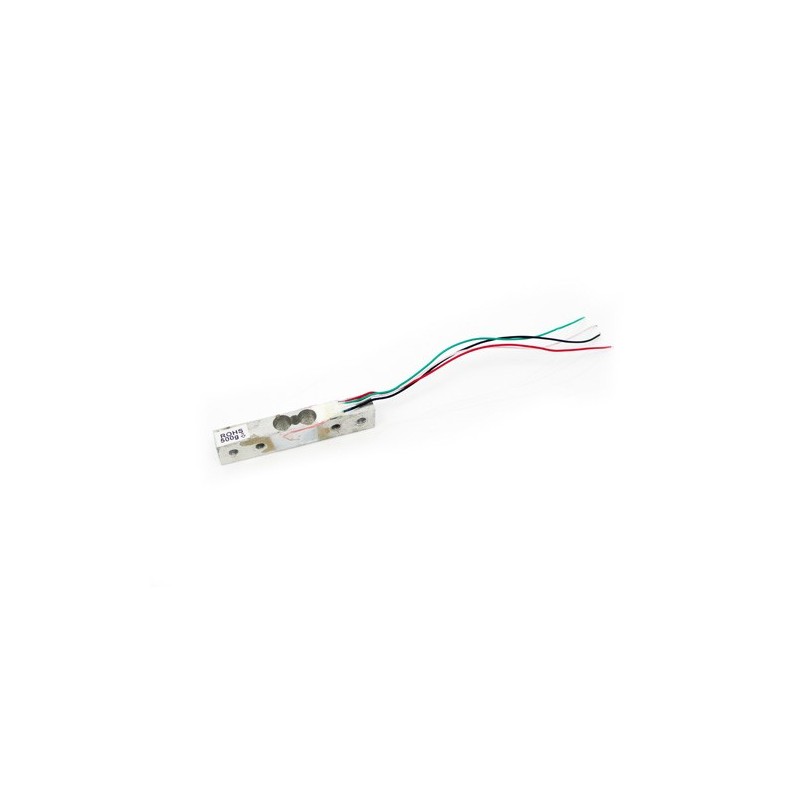

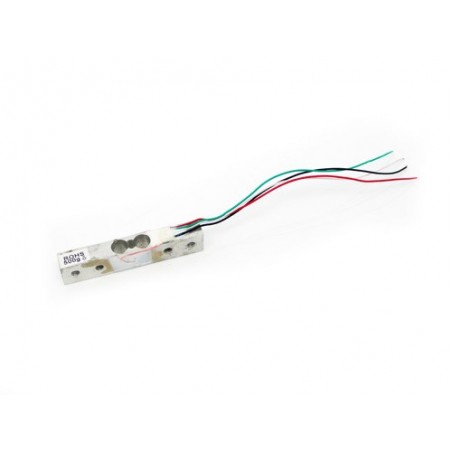

Weight Sensor (Load Cell) 0-500g
Applicable to electronic scale, price computering scale, electronic platform scale, digital scale; parcel post scale, electronic balance and all varieties of commercial scales by single load cell.
Specifications
-
Capacity g 500g
-
Output sensitivity mv/v 0.5±0.1
-
Nonlinearity %.F.S 0.05
-
Hysteresis %F.S 0.05
-
Repeatability %F.S 0.05
-
Creep(30min) %.F.S 0.05
-
Temperature effect on sensitivity %F.S/10? 0.05
-
Temperature effect on zero %F.S/10? 0.05
-
Zero balance %F.S ±0.5
-
Input resistance ?(ohms) 1120±10
-
Output resistance ?(ohms) 1000±10
-
Insulation resistance M?(ohms) ?2000
-
Recommended excitation voltage v 5v
-
Method of connecting wire red? Exc + black? Exc –
-
green? Sig + white?Sig -
-
Dimension(mm): 45 x 9 x 6
Documents
Please visit our wiki page for more info about this product.
