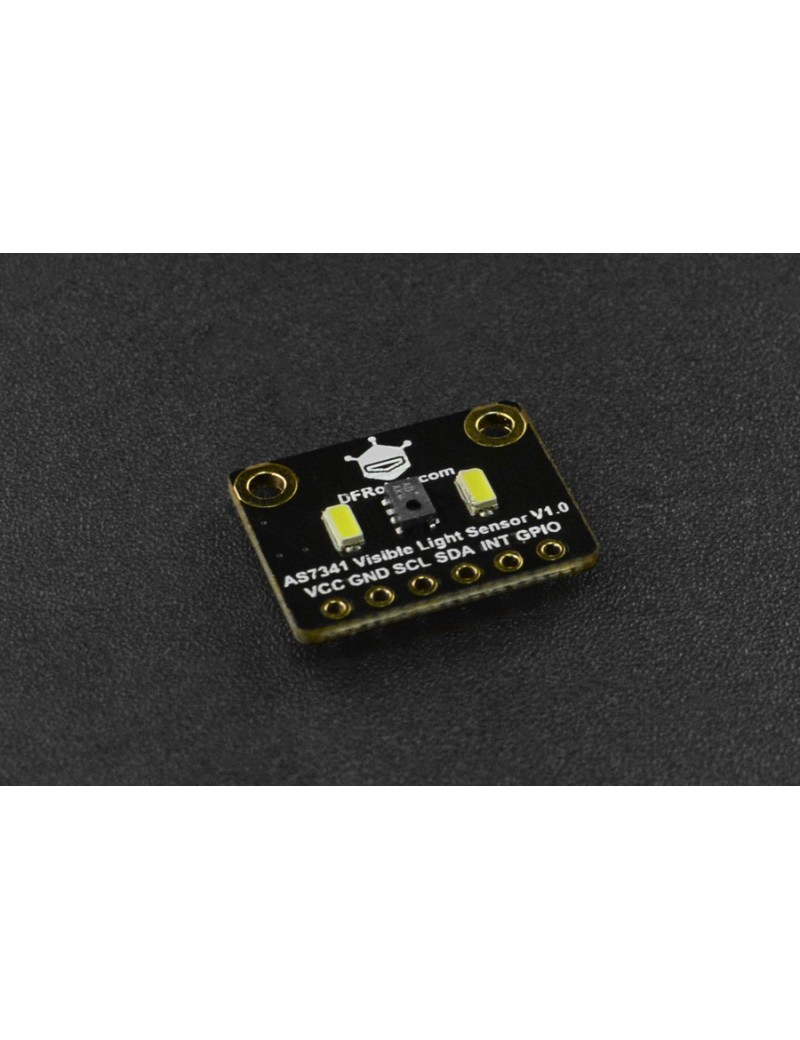

We live in a colorful world, but how much do you really know about color? You eyes may deceive you, while the sensors don’t lie. This AS7341 11-Channel Visible Light Sensor-Breakout can tell you the truth about color.

DFRobot AS7341 11-Channel Visible Light Sensor-Breakout employs the new generation of AS7341 spectral sensor IC launched by the well-known ARM company. The sensor features eight channels for the visible light, one channel for near-IR, and one channel without a filter. Also it integrates a dedicated channel to detect ambient light flicker. Besides that, this sensor comes with 6 independent 16-bit ADC channels for data processing in parallel. The two on-board extra-bright LEDs can supply light in dark environment.

RGB Color Sensor vs AS7341 Sensor

You can click to find information about visible light.

• 8 optical channels covering the visible spectral range
• 50Hz and 60Hz ambient light flicker detection
• 6 independent 16-bit ADC channels

• High accuracy color detection and matching
• Color mixing effect detection
• Lighting color temperature adjustment
• Lighting atmosphere control
• Modern plant cultivation

• Power Supply: 3.3V~5V
• Visible Light Detection Range: F1(405-425nm), F2(435-455nm), F3(470-490nm), F4(505-525nm), F5(545-565nm), F6(580-600nm), F7(620-640nm), F8(670-690nm)
• Operating Current(LED Off): <5mA
• LED Driving Current: Class 1-20 (4-42mA)
• I2C Address: 0x39
• Operating Temperature Range: -30℃~85℃
• Operating Humidity Range: 5%RH~85%RH
• Dimension: 18*14mm/0.71*0.55”

• Product wiki

• AS7341 Visible Light Sensor x1
• 2.54-7P Single Row Black Pin Header x1
