TF-Luna Lidar Ranging Sensor, 8m Ranging Distance
Write your review
47,58 €
Tasse incluse

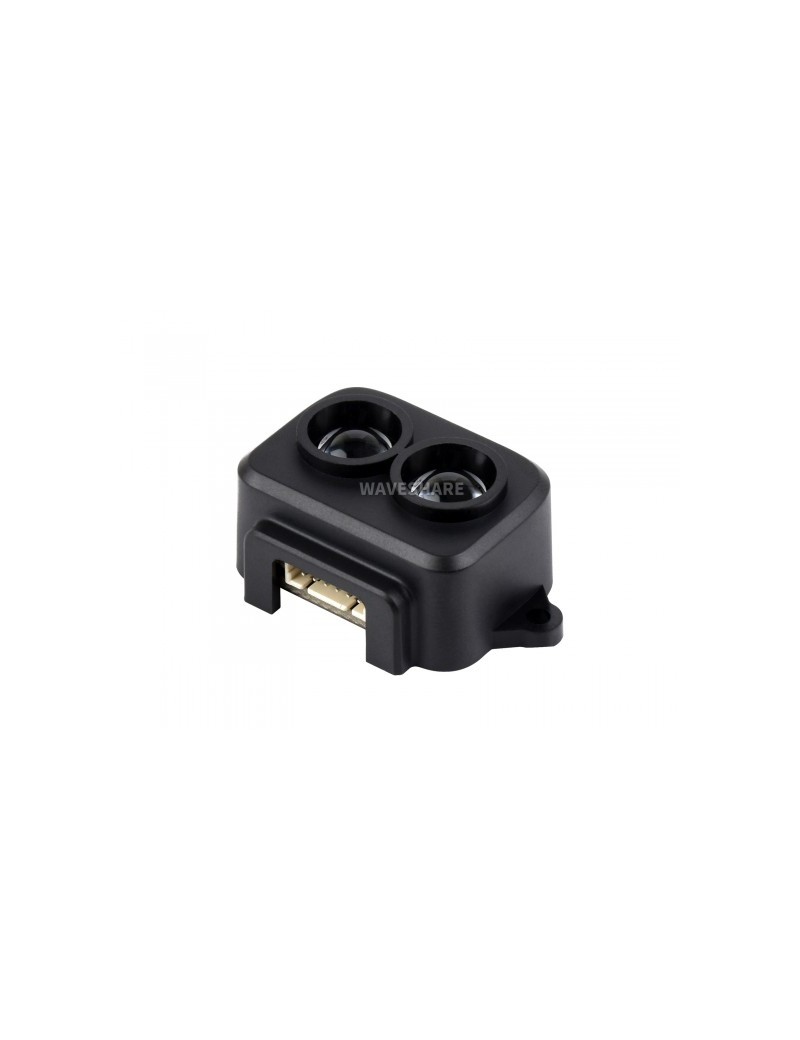

TF-Luna Lidar Ranging Sensor
8m Ranging Distance Low Power Compact Size Easy Integration
Specifications
| PERFORMANCE | |||
|---|---|---|---|
| Ranging distance | 0.2~8.0m @90% reflectivity (Indoor 0klux) 0.2~2.5m @10% reflectivity (Indoor 0klux) 0.2~8.0m @90% reflectivity (Outdoor 90klux) 0.2~2.5m @10% reflectivity (Outdoor 90klux) |
Accuracy | ±6cm@(0.2~3m) ±2%@(3~8m) |
| Frame rate | UART: 1~250Hz (adjustable, default 100Hz) I2C: 1~100Hz (adjustable) |
Distance resolution | 1cm |
| Ambient light tolerance | 70klux | Operating temperature | -10~60℃ |
| OPTICAL PARAMETERS | |||
| Light source | VCSEL | Central wavelength | 850nm |
| Eye safety | Class1 (IEC60825) | Field of view | 2° |
| ELECTRICAL PARAMETERS | |||
| Power supply | 3.7~5.2V | Average current | ≤70mA |
| Power | ≤0.35W | Peak current | 150mA |
| Communication level | LVTTL (3.3V) | Communication interface | UART, I2C, I/O |
| OTHERS | |||
| Dimension | 35.00 × 21.25 × 13.50mm | Case material | ABS/PC |
| Storage temperature | -20~75℃ | Weight | <5g |
TOF Ranging Principle
TF-Luna Is A Single-Point Ranging Lidar Based On The TOF Principle, With Unique
Optical And Electrical Design, It Can Achieve Stable, Accurate, And Highly Sensitive
Distance Measurement
Powerful Adaptability
Built-In Multiple Adaptive Algorithms, Multiple Adjustable Configurations And Parameters, Features Excellent Ranging Performance In Complex Environments And Can Meet More Application Requirements
High Performance, More Stable
Features High Stability, High Accuracy, And High Sensitivity Performance
In The Short-Range Of 0.2m~8m
Compact Size, More Flexible Integration
Adopts A Compact Structural Design, With Smaller Size And Lower Power Consumption, Can Be Embedded Inside The Robot To Reduce The Overall Size And Improve Its Passability
Low Power Consumption, More Power Saving
Power Consumption ≤ 0.35W, Which Is Suitable For Battery-Powered Or Low-Power Applications
Supports UART And I2C Interfaces
For Use With Controller Boards Like Raspberry Pi/Raspberry Pi Pico/ESP32/Arduino
| NUMBER | FUNCTION | DESCRIPTION |
|---|---|---|
| 1 | +5V | Power supply |
| 2 | RXD/SDA | UART RX / I2C data |
| 3 | TXD/SCL | UART TX / I2C clock |
| 4 | GND | ground |
| 5 | Configuration Input | I2C mode: ground UART mode: disconnected or 3.3V |
| 6 | Multiplexing output | On/off mode: output I2C mode open and on/off mode close: data ready signal |
Application Scenarios
Product Show
Outline Dimensions
VM-24893
