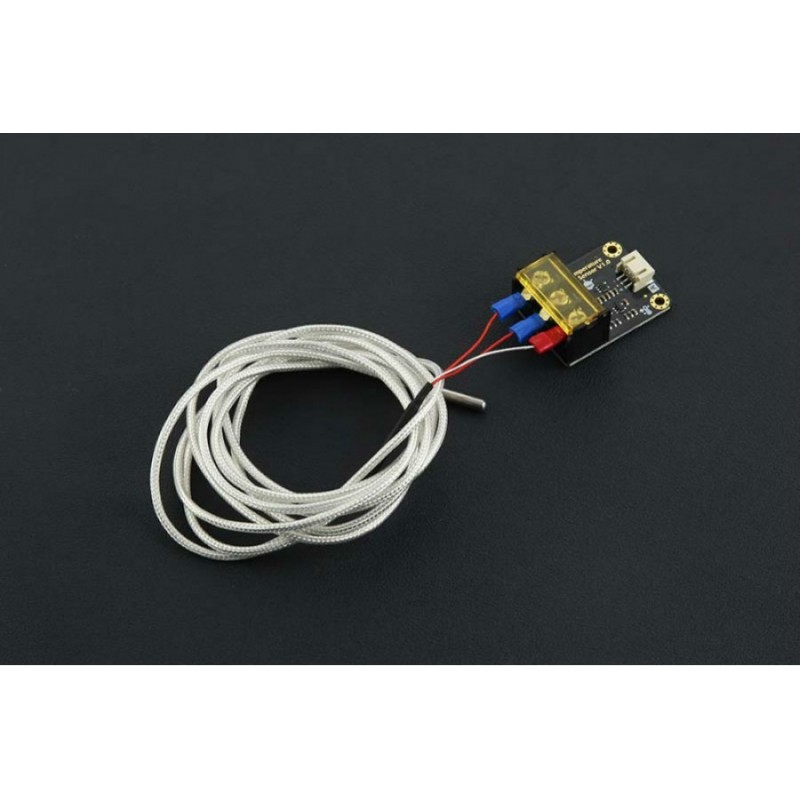

What sensor should you use when you need to measure temperature? Most people will think of a DS18B20 temperature sensorfirst, but this sensor is only capable of measuring temperatures up to 125C. In order to measure temperatures greater than 100C you will need something with a greater temperature range and resistance. This is the sensor you need! We have used a PT100 resistance type high temperature probe which is often used in industrial applications. Using this probe you can measure a temperature range between 30-350C. The module itself is compatible 3.3V-5.5V supply, so Arduino, STM32 and other microcontrollers are compatible.


FEATURES

• Supports 3-Pin "Gravity"
• interfaceAnalog output

SPECIFICATION

1.Module

• Operating voltage: 3.3V-5.5V
• Analog output voltage: 0.2V-2.8V
• Working temperature range: 30-350C
• Relative Error: ±2% F.S.
• Interface: PH2.0-3P
• Size: 42 * 32 * 18 mm/ 1.65 * 1.26 * 0.7 inches
• Waterproof: No

• Probe Working temperature: -20-400C
• Sheathing Tolerance: up to 200
• Length: 2m
• Precision: 0.5C
• Waterproof: Yes

DOCUMENTS

• Product Wiki
• More Documents

SHIPPING LIST

• Analog High Temperature Sensor Module x1
• PT100 Probe x1
• Analog Sensor Cable x1

PROJECTS

Project 1. Build KnowFlow: automatic water monitor

KnowFlow is the name of this water quality monitoring device, based on Arduino Uno. It can automatically monitor 5 parameters of water: pH, Temperature, Dissolved Oxygen, Electronic Conductivity, ORP.

• Central Control Unit: Arduino Uno (DFRobot Bluno in this case) and Expansion Shield (DFRobot Expansion Shield V7.1 in this case)
• Water Sensors: pH (pH probe and pH circuit board); EC (EC probe and EC circuit board); ORP (ORP probe and ORP circuit board); Temperature (temperature probe and temperature circuit board); Dissolved Oxygen (DO probe, BNC and circuit board); real time clock circuit board
• Data Storage: Micro-SD module, Micro SD card
• Fit and fix: mounting plate, water proof box( 200mm_150mm_75mm), water proof joint
• Other parts: Cables (Wires), bread board, bolts and nuts, screws, battery, double-sided adhesive, write on tape, small wrench, spiral cable wrap
