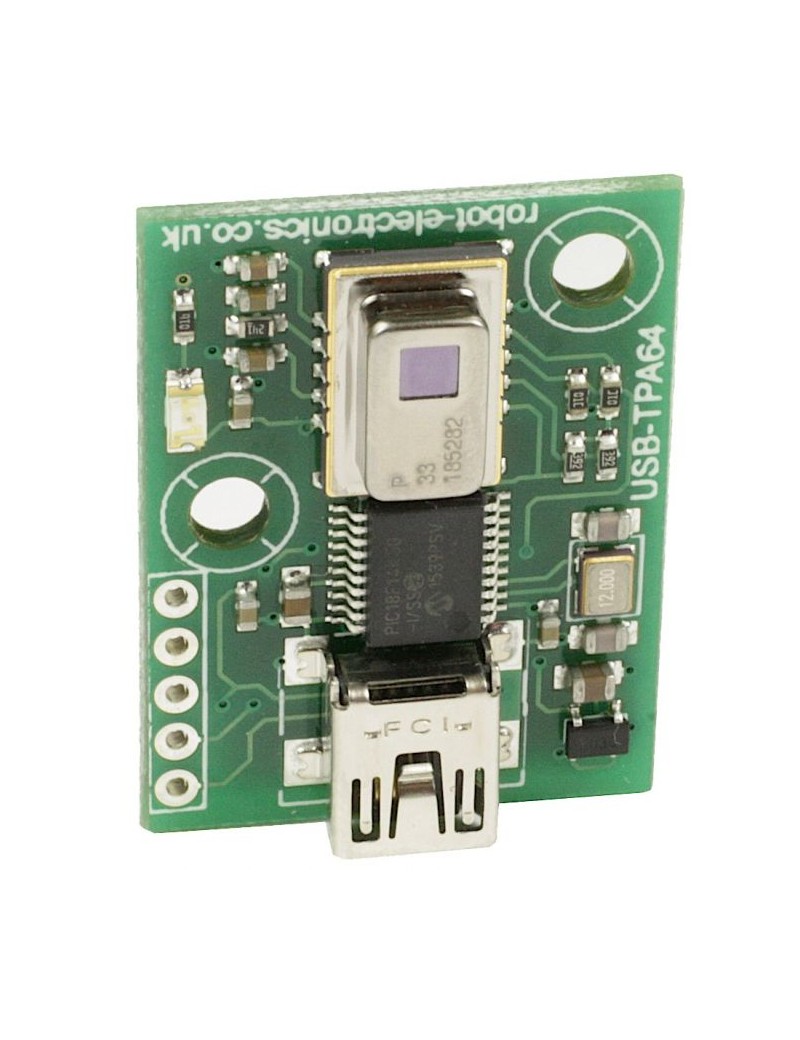

Utilising the fantastic AMG8833 thermopile array from Panasonic, the USB-TPA64 offers a complete temperature imaging solution.

Video above is taken from our C# example. The top image is raw data painted to the screen, the bottom are after bilinear and bicubic interpolation. The sensor even shows a heatspot for the camera in the top right!

• Temperature detection of two-dimensional area: 8 × 8 (64 pixels)
• Temperature range of 0°c to +80°c
• Temperature accuracy of +/- 2.5°c
• Human detection at up to 7m
• Viewing angle 60°, optical axis gap 5.6°
• Weight is only 4g
• Size 24mm x 32mm

• USB-TPA64 viewer
  C# Source code for viewer

  USB-TPA64 Datasheet
