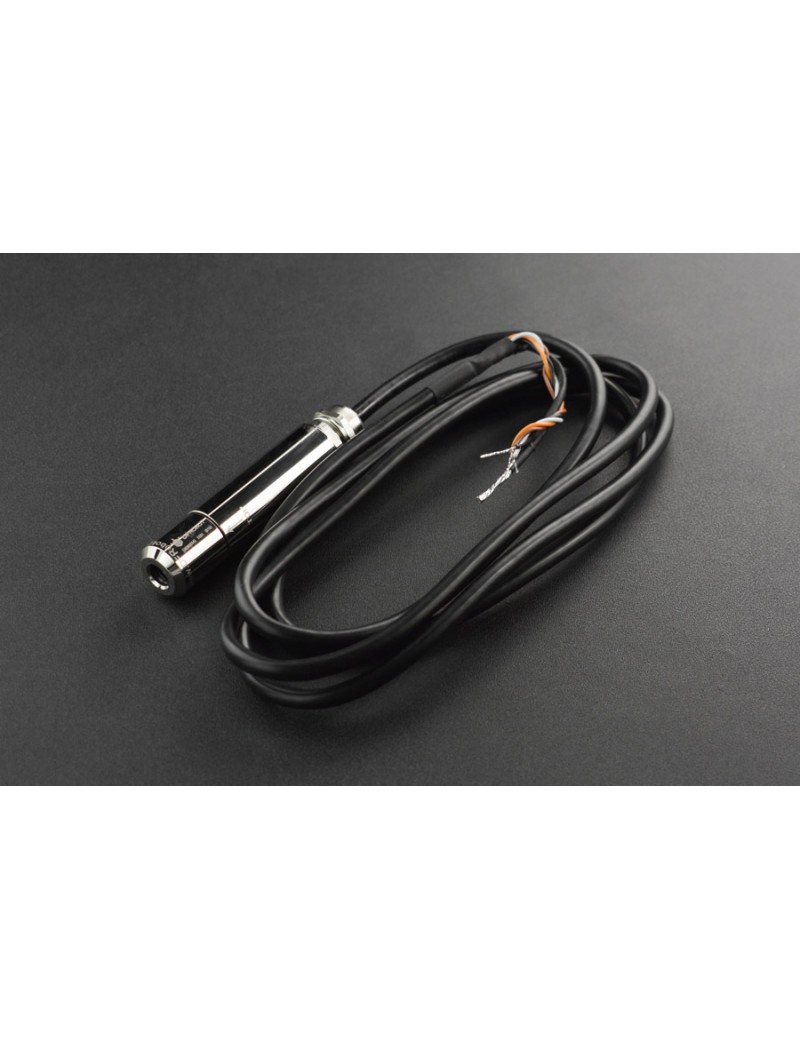

TC01 Non-contact 16x4 Pixel Infrared Temperature Sensor
Write your review
132,98 €
Tasse incluse
INTRODUCTION
The main function of this TC01 non-contact 16x4 pixel infrared temperature sensor is to realize remote temperature detection via non-contact 16x4 pixel infrared. It can detect the environment temperature, and its 16x4 pixels support producing temperature figure of 64 pixels. The sensor adopts metal crust, which is waterproof, dustproof and ensures high anti-interference even in varieties of complex scenarios. The standard Modbus-RTU industrial protocol RS485 interface is adopted. So that it is compatible with a variety of industrial personal computer.
Schematic
It can be widely applied to applications like high-precision contactless temperature testing, temperature scanners, intrusion/motion detection, status detection/human positioning and so on.
Schematic
FEATURES
- Small size, low cost 16x4 pixels IR array
- Industrial-level temperature range
- Noncontact temperature detection
- Waterproof, dustproof and high anti-interference
SPECIFICATION
- Operating Voltage: 9-24V DC
- Rated Power: 0.1W
- Operating Temperature: -40℃-85℃
- Temperature Detection Range: -20℃-300℃
- Precision: ±1℃~±5.5℃
- Infrared Array: 16x4
- FOV: 60°x 16°
- Protection Level: IP65
- Communication Interface: RS485
- Communication Protocol: Modbus-RTU
- Probe Diameter: 0.606inch / 15.4mm
- Probe Length: 3.110inch / 79mm
- Cable Length: 1.5m
- Cable Interface: stripped tin-plating wire interface
DOCUMENTS
SHIPPING LIST
- TC01 Non-contact 16x4 Pixel Infrared Temperature Sensor x1
