Thermal Sensors

95,95 €
Tasse incluse

Thermal Sensors

Quantità

Detects a candle flame at a range 2 metres (6ft) and is unaffected by ambient light!
Detect Human Body heat!
Servo control for image construction!

Full Technical Data

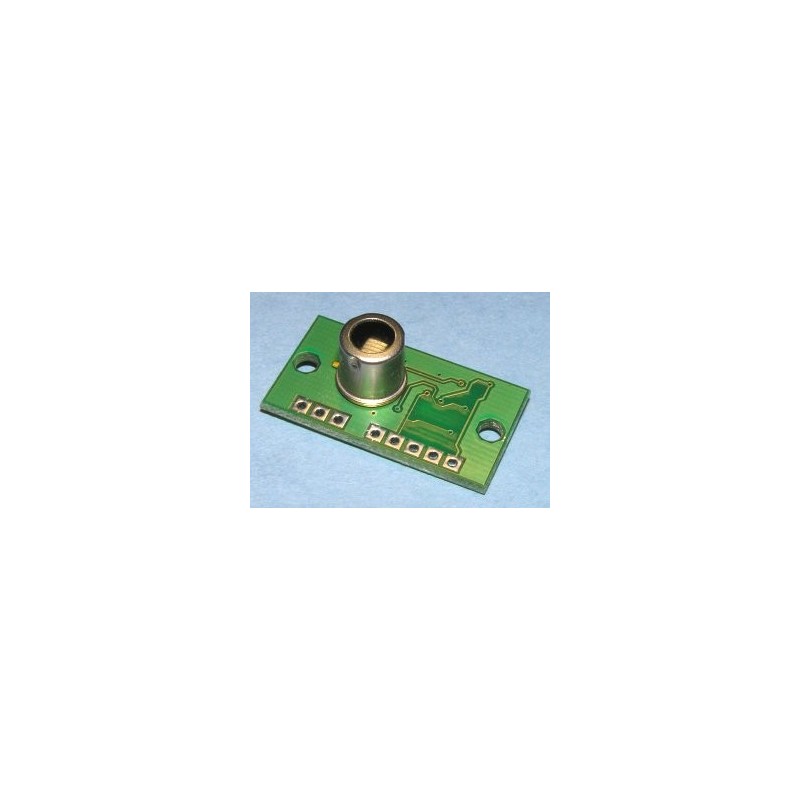

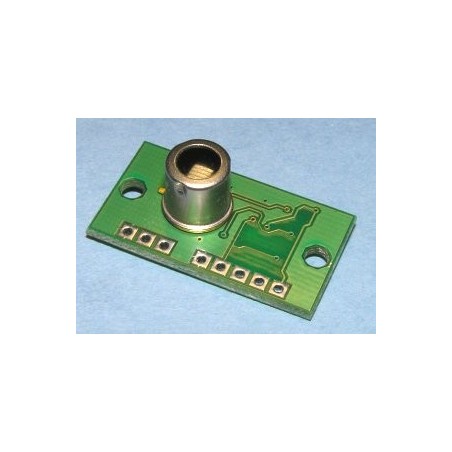

8 Pixel Thermal Array Sensor

Voltage - 5v only required
Current - 5mA Typ. excluding servo
Temperature Range - 4°C - 100°C
Accuracy (Full FOV) - +/-2°C +/-2% from 10°C to 100°C,
Accuracy (Full FOV) - +/-3°C from 4°C to 10°C
Field of View - 41° x 6° (8 pixels of approx. 5° x 6°)
Outputs - 1 ambient + 8 pixel temperatures
Communication - I2C Interface
Servo - Controls servo in 32 steps to 180° rotation
Small Size - 31mm x 18mm

DEV-TPA81
