INTRODUCTION

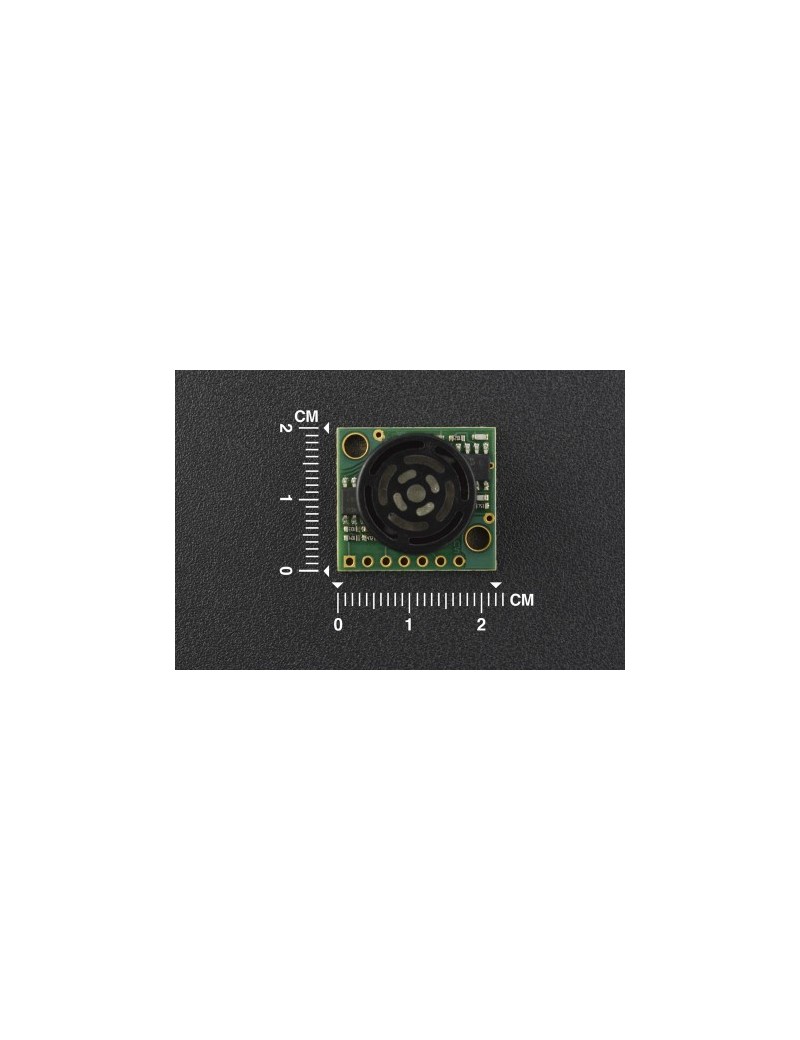

The MB1009 ParkSonar-EZ-144 has one-inch resolution, provides both proximity and range information for the nearest detectable target, and includes various output options: high/low logic level and RS232 serial.
The ParkSonar-EZ line is designed to detect vehicles within a calibrated detection zone. The ParkSonar-EZ proximity sensors report when a vehicle or other detectable target enters the detection zone. The target is released after leaving the ParkSonar-EZ’s detection zone.
The MB1009 has a detection zone of ~12 feet. The MB1009 will allow for 14+ simultaneous sensors depending on sensor mounting and environment.

SPECIFICATION

• Resolution of 1 inch
• ~10 second target acquire time*
• ~5 second target release time*
• Automatic multi-sensor operation
• Vehicle Detection Sensor
• Maximum reported range of 254 inches (645 cm)
• Choice of 2 digital outputs: Logic Level (High/Low) and RS232 serial
• 42kHz Ultrasonic sensor measures distance to objects
• RoHS Compliant
• Virtually no sensor dead zone, objects closer than 6 inches typically range as 6 inches
• Operates between 2.5 and 5.5V
• Low 2.0mA average current requirement
• Small, light weight module
• Designed for easy integration into your project or product
• Proximity Detection zone of 12 feet (144 inches)

DOCUMENTS

SHIPPING LIST

• ParkSonar-EZ-144(MB1009) x1
