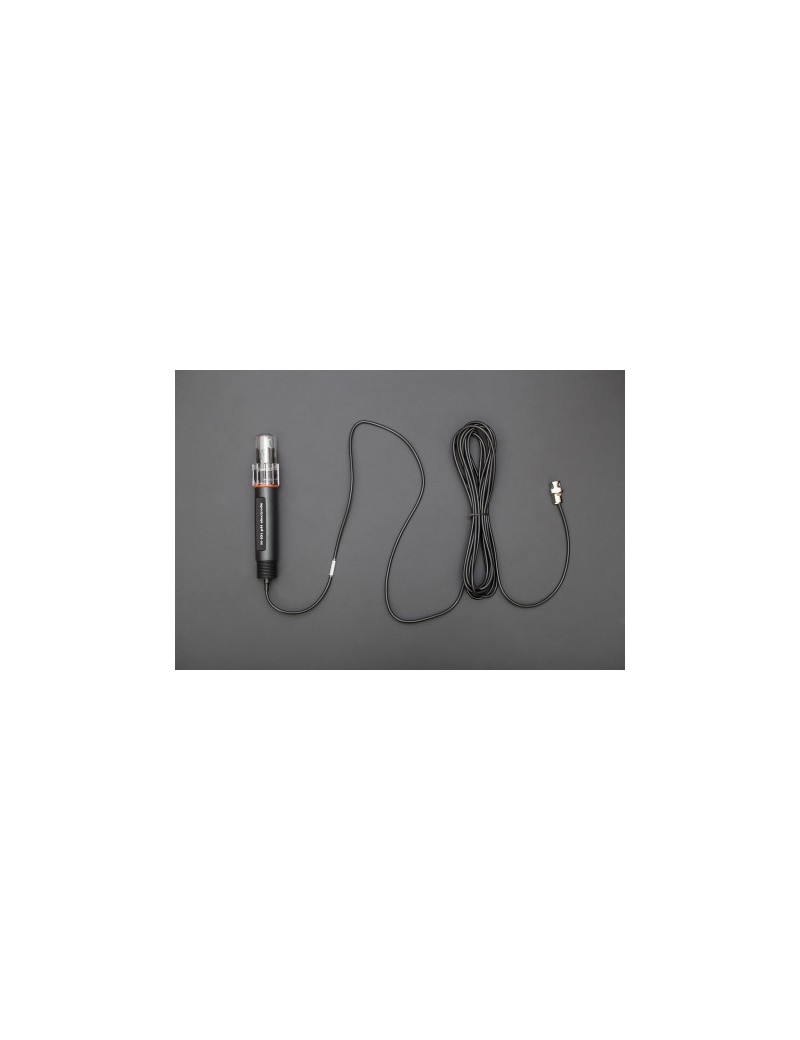

Industrial pH Electrode - Armor Casing
Write your review
60,39 €
Tasse incluse
his pH combination electrode is made of sensitive glass membrane with low impedance.
INTRODUCTION
This pH combination electrode is made of sensitive glass membrane with low impedance.It can be used in a variety of PH measurements with fast response, good thermal stability.It has the good reproducibility, difficult to hydrolysis, and basically eliminate the alkali error .In 0 to 14pH range,the output voltage of the electrode is linear.The reference system which consist of the Ag/AgCl gel electrolyte salt bridge has a stable half-cell potential and excellent anti-pollution performance.The ring PTFE membrane is not easy to be clogged, so the electrode is suitable for long-term online detection.
Note: This is a probe only, and it could be a upgrade part for Analog pH Meter (SEN0161). If you need an industrial long-term pH sensor directly, please check Industrial pH Meter Kit Pro (SEN0169). And the output voltage feedback is from 0 to 5v to indicate pH value from 0 to 14.
APPLICATIONS
The electrode is suitable for all kinds of printing, circuit board factory, waste water containing chromium and other industrial and domestic sewage pH monitoring.
SPECIFICATION
- Length (with protective cover):17.7cm(6.97")
- Diameter:2.74cm(1.08")
- Wire Length:5m(196.85")
- Connector:BNC
- Measuring Range:0-14pH
- Measuring Precision: ≦0.02pH
- Suitable Temperature: 0-60℃
- Response Time:10sec
- Drift:≦0.02PH/24hours
- Resistance of Sensitive Membrane: ≦200*106Ω
- Slope: ≧95 %
- Electrode's Equipotential Point:7±0.5PH
DOCUMENTS
SHIPPING LIST
- H-101 pH electrode ×1
- pH electrode manual ×1
