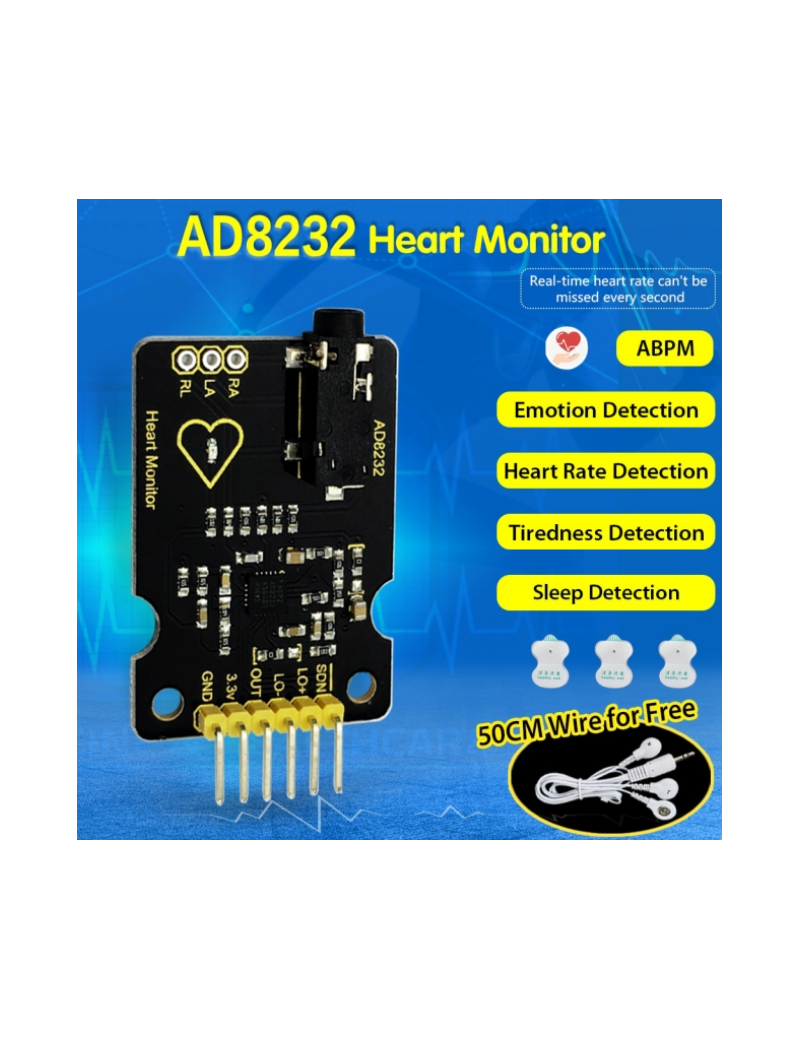

1. Introduction

The AD8232 is an integrated front end for signal conditioning of cardiac bioelectrical signals to monitor heart rate. This is a low-power, single-lead and heart rate monitor front end for all types of vital signs.

2. Specification

Power voltage：DC 3.3V

Output：analog output

Interface(connect RA, LA, RL):3PIN, 2.54PIN or earphone jack

Size: 36mm * 31mm * 18mm

Working Temperature：-40 ℃ to +85 ℃

3. Connection Diagram

Related Data Link

Get Codes of All Project

http://www.keyestudio.com/files/index/download/id/1505111581/

Get Processing Software

https://processing.org/download/
