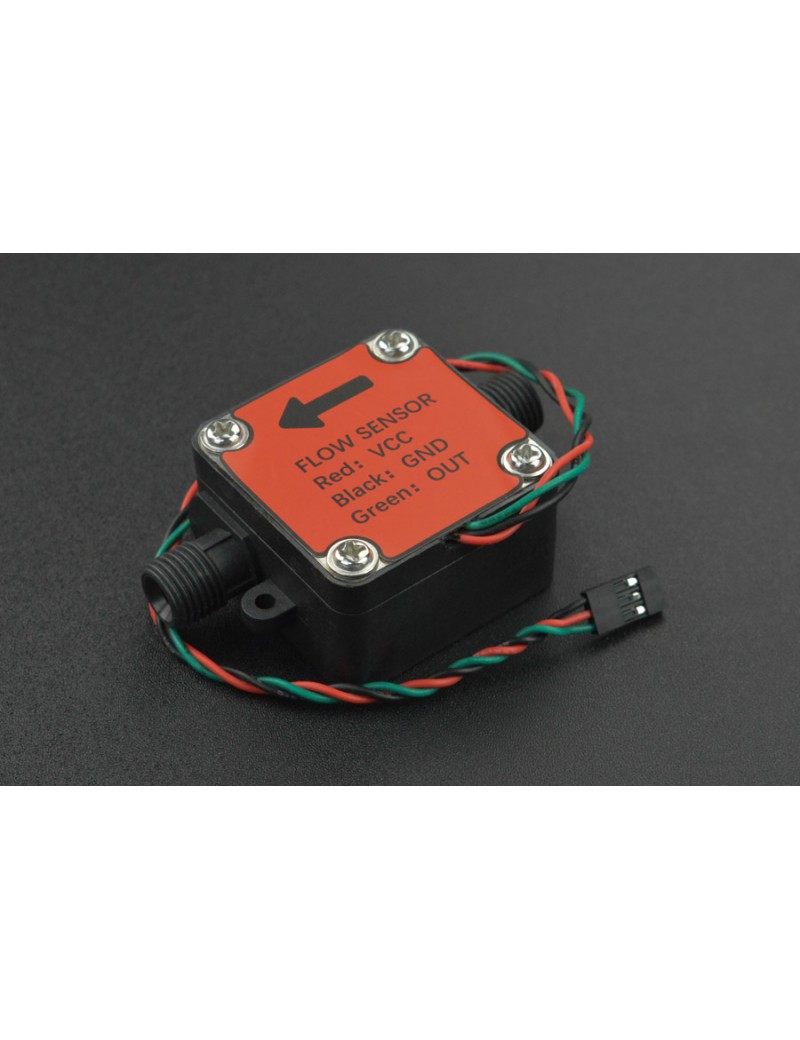

Gravity: Liquid Flow Sensor (G1/4)

29,16 €
Tasse incluse
Quantità

INTRODUCTION

This Gravity: liquid flow sensor is designed based on the electromagnetic principle. It adopts an O-ring rubber seal and uses silicone sealant at the outlet end to strength water-resistance. With high anti-interference and anti-impact, the sensor offers reliable performance and long service life. Also, it is designed with G1/4 thread connectors for easy installation.

The sensor can be used with microcontrollers like Arduino UNO to measure the flow of liquids with high concentration and low viscosity like water, diesel, engine oil, milk, paint, detergent, honey, etc. (no impurity in liquid)

Gravity: Water Flow Sensor (G1/4)

FEATURES

  • Gravity connector, easy to wire
  • Wide voltage of 3.5-24V
  • Supports measuring liquid with high concentration and low-viscosity
  • RoHS compliant

APPLICATIONS

  • Measure the flow of liquids with high concentration and low viscosity

SPECIFICATION

  • Operating Voltage: DC3.5-24V
  • Operating Current: ≤10mA(DC5V)
  • Output: NPN Pulse signal
  • Pipe Diameter: G1/4
  • Thread Outer Diameter: 13mm
  • Thread Length: 10mm
  • Water Pressure Resistance: ≤1.0MPA
  • Insulation Resistance: >100MΩ
  • Error: ±1%(0.3-5L/min)
  • Output Pulse High Level: >DC4.7V(Input voltage DC5V)
  • Output Pulse Low Level: <DC0.5V(Input voltage DC5V)
  • Output Pulse Duty Ratio: 50%±10%
  • Flow-Pulse Correlation: 1L=540 pulses
  • Operating Temperature Range: -10°~70°C
  • Operating Humidity Range: 35%~90%RH(No condensing)
  • Storage Temperature: -25°~+80°C
  • Storage Humidity: 25%~95%RH
  • Dimension: 80*47*30mm/3.15*1.85*1.18”

DOCUMENTS

SHIPPING LIST

  • Gravity: Liquid Flow Sensor (G1/4) x1
DF-SEN0549
