A high repeatability is ensured. Switch port is connected as standard as an opener, but it can be resoldered as a closer.

Note: The control software WinPC-NC Starter does not support the configuration of the Tool Length Sensor. You are in need of an upgrade to the USB full version or the control software UCCNC. If you want to operate the Tool Length Sensor with UCCNC, please contact info@stepcraft-systems.com for an adjusted M31 makro.

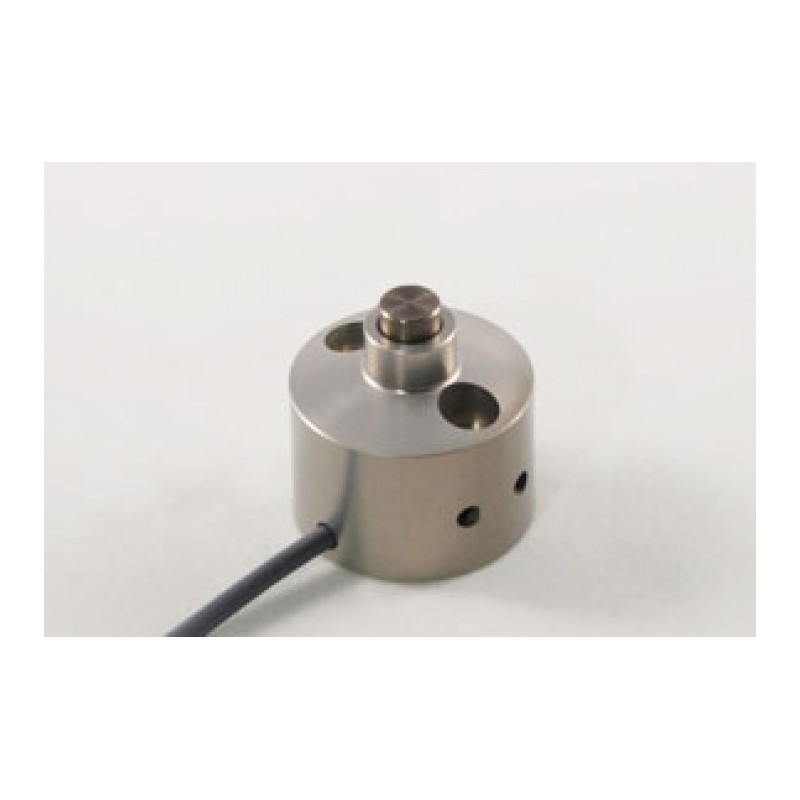

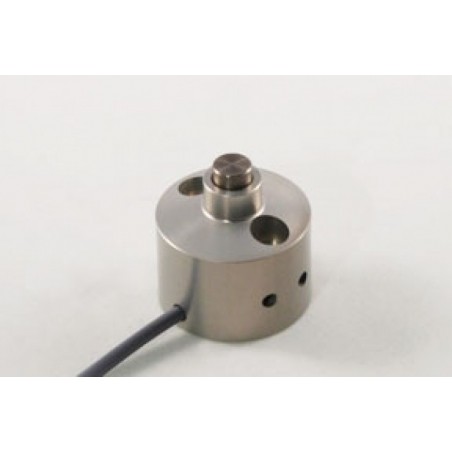

Technical Specification:
Diameter: 32 mm
Height: 33 mm
Measure point diameter: 8 mm
Switch: Open or close function
Material: Aluminum (elox.) and brush (hard chrome)
Cable length: ca. 2,0 m
Fixable with two M4 screws
Weight: 95 g

Scope of Delivery:
Completely assembled tool length sensor
Incl. 2 m cable (without plug)
