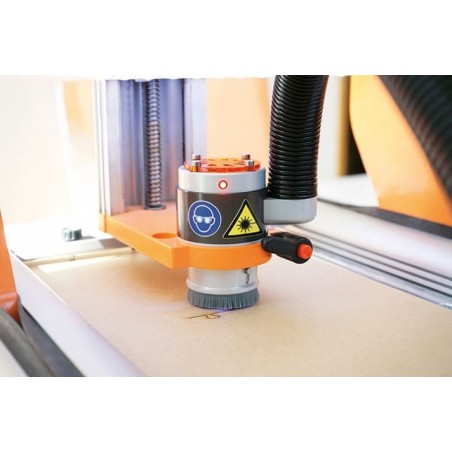

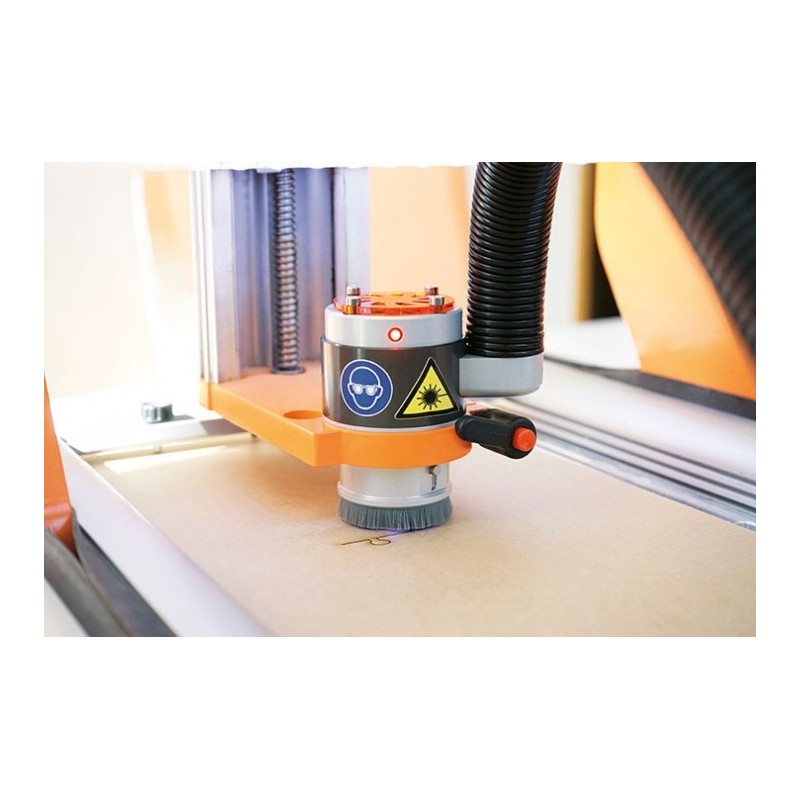

The Laser allows for a contactless engraving of various materials without requiring a prior clamping and is also able to cut smaller workpieces. Depending on the method of processing, the intensity of the laser beam can be adjusted on the computer from 0 to 100%. Additionally, the laser not only contains an integrated zero point sensor but an active diode sealing air as well which vacuums the exhaust air and guides it through the fine particle filter. This ensures not only the protection of the laser diode but a simultaneous cooling as well.

We recommend to guide the filtered exhaust air that is emitted from the laser control unit to an outdoor area using the optionally available Exhaust Air Hose.

Notice: The laser tool is a class 4 laser. Special safety regulations apply. Please read the Operating and Safety Instructions as well as the Verification of Notice for General Safety Instructions and Declaration of Examption for the STEPCRAFT Laser DL455 before buying the product. A sale without the verification signed is not possible. Also note adapted General Terms and Conditions in section "2. Contractual Agreements".
The control software WinPC-NC Fullversion or UCCNC is required for the usage of the Engraving Laser DL445.
For connecting the Engraving Laser DL445 with the Switch-Box, the 2. Layer Module is necessary.

Technical Specifications:

• 3 W laser diode
• 9-fold safety concept
• Integrated Zero Point Sensor
• Vaccum system with fine particle filter
• Sight Protecting Brush
• Optional exhaust air hose available by the meter

Scope of Delivery:

• 1x Laser Head
• 1x Control Unit
• 1x safety goggles
• 1x 15 pin sub D 15 connection cable
