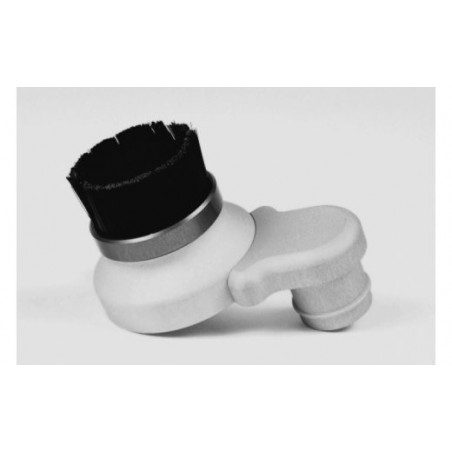

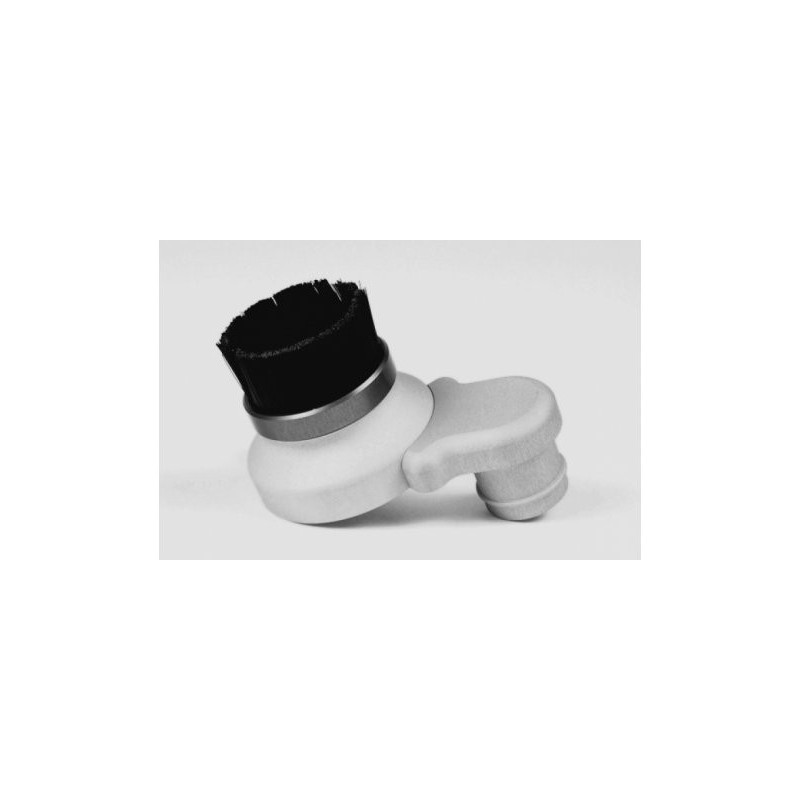

The Vacuum Adapter suitable for your AMB, Kress and MM-1000 spindle!

The vacuum system is constructed as a ring nozzle, which encompasses the milling cutter completely and reliably vacuums the dust. The detachable cup brush enables the change of a tool while the Vacuum Adapter is attached. The cup brush provides a good sealing of the workpiece and recedes in case of contact with the clamping bars.

The enclosed tube can be connected to an e. g. commercially available vacuum cleaner. This can be accomplished with the use of the appropriate Air Regulation.

The use of the Vacuum Adapter together with the Automatic Tool Changer is not possible.

Scope of Delivery
Vacuum, fully assembled with cup brush and suitable for Kress spindle typ 530 FM, 800 FME, 800 FME-Q and 1050 FME
suitable for MM-1000
suitable for AMB 800 FME
1x Flexible tube, 2 m, diameter: 22,5 mm
1x Spacer ring
