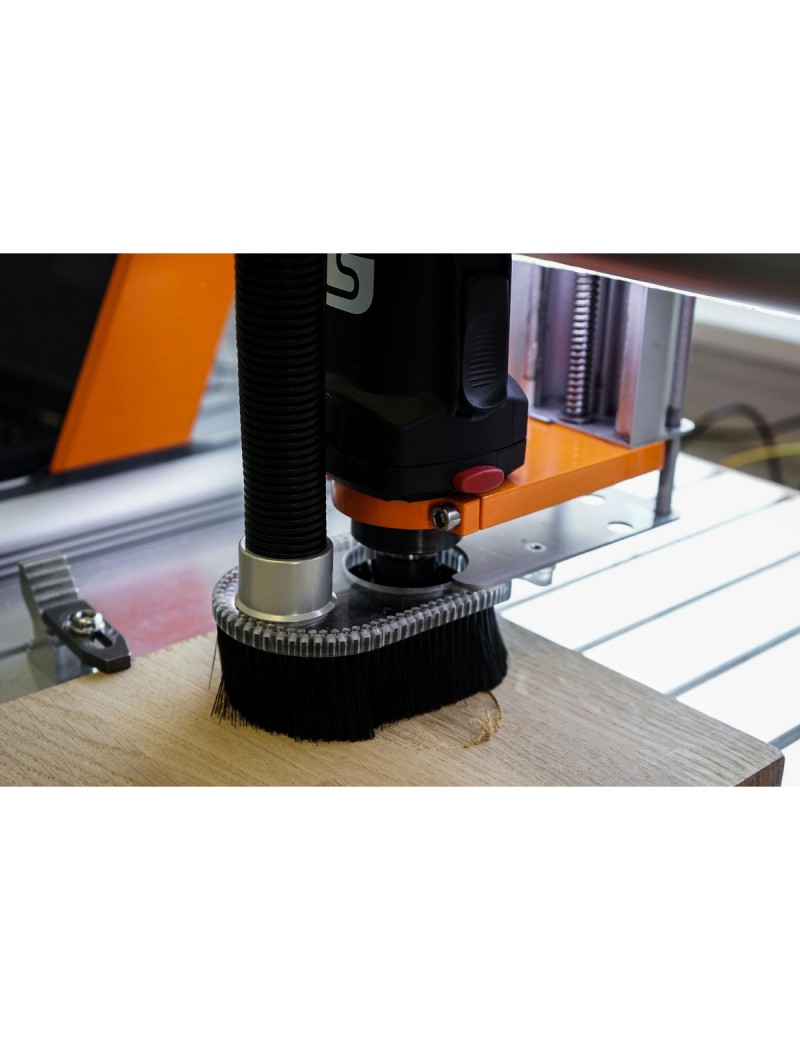

The universal exhaust adapter for your STEPCRAFT D-Series! Suitable for all milling motors with clamping collar 43 mm.

The suction shoe is attached with four neodymium magnets which allows for a quick and easy assembly and disassembly. Thanks to the automatic height compensation of 34 mm (Z direction), the exhaust adapter adjusts optimally to the respective workpiece material while the robust double row brushes provide a very good sealing. The guide is attached to the to the Z-axis and can be upgraded easily. Additionally, the exhaust adapter can be fixed in the upper position for maintenance works with the clamping lever.

Note: The universal exhaust adapter is suitable for STEPCRAFT D-Series models D.300 - D.600 version 1 and STEPCRAFT D-Series models D.300 - D.840 version 2..

Optional accessories

• Control the vacuum speed and efficiency  with the optional air regulator.
• The exhaust adapter is designed for use with the automatic tool changer. The necessary, optional accessories will soon be available in our shop.

Scope of delivery

• Exhaust adapter (magnetic)
• Complete guide mechanism
• Extraction hose 2 m
