Centering Vice CV-80
Write your review
132,98 €
Tasse incluse

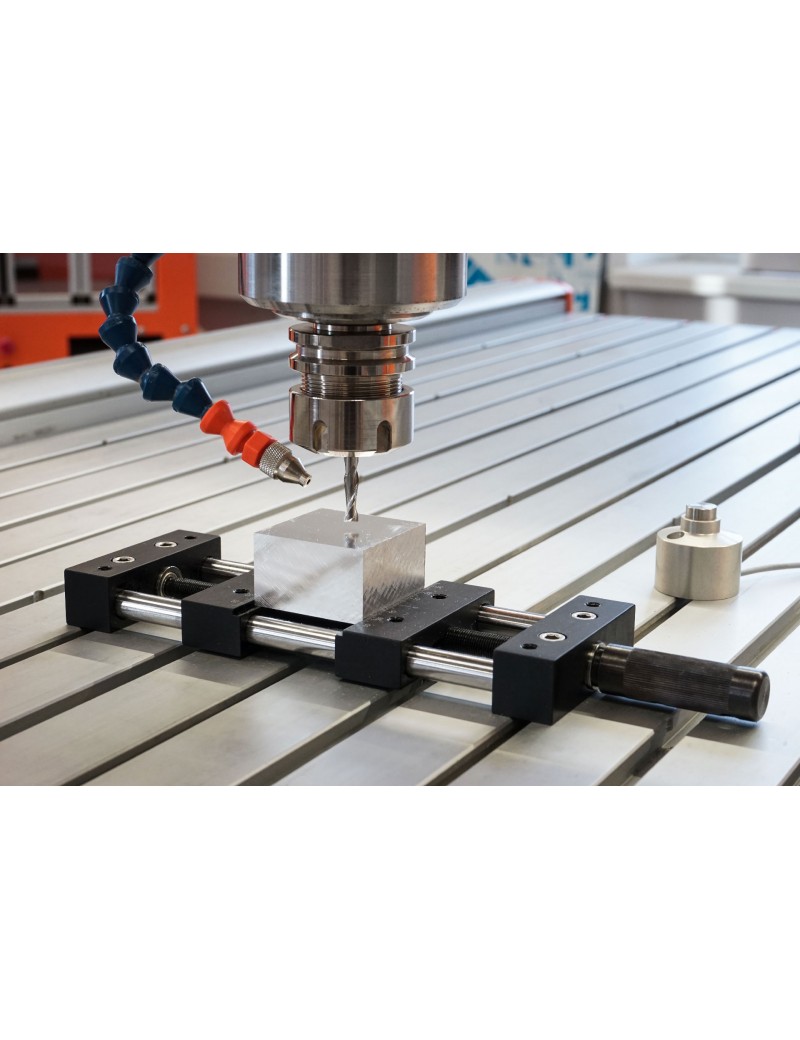

The centering vice CV-80 is the perfect tool when it comes to clamping workpieces on a CNC machine. The workpiece is accurately secured between the two jaws of the machine vice. As both jaws close simultaneously, workpieces of different size with centric zero point can be easily clamped centrally in direction of the jaws. The scale on the jaws of the CV-80 facilitates the positioning of the workpiece even more.
The centering vice CV-80 requires a T-Slot table and can be used together with the D-Series (D.420, D.600 and D.840), M-Series and Q-Series.
Technical Specifications:
- Robust and precise design
- 12 mm hardened steel linear guides
- Fine thread steel screw (steel thread screw) M10 x 1 mm, with 3x ball bearing
- PA6 aluminum completely anodized
- Scale for quick and easy workpiece positioning
- Suitable for use with the CNC machines D.420, D.600, D.840, M.500, M.700, M.1000, Q.204, Q.404, Q.408
- Requires a T-Slot table
- Maximum clamping width: 102 mm
- Width: 80 mm
- Length: 225 mm
Scope of Delivery:
- 1x Centering vice CV-80
- 4x M6x25 mm cylinder head screw
- 4x M6x30 mm cylinder head screw
- 4x M6 nut
- 4x Slot nut for M6 (Q-Series)
