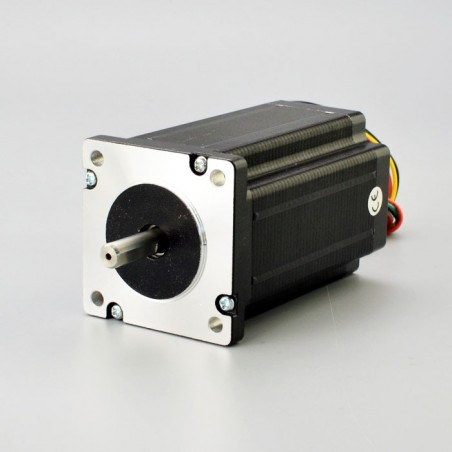

Dual Shaft CNC Stepper Motor Nema 24 100mm 4Nm(566 oz.in) 24HS39
Write your review
51,09 €
Tasse incluse
Dual Shaft CNC Stepper Motor Nema 24 100mm 4Nm(566 oz.in) 24HS39-3008D
Description
This is the strongest Nema 24 stepper motor we carry. It with 8 wires which you can give three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. The holding torque with bipolar option can reach 4Nm(566oz.in). A rear shaft can mount encoder, hand wheel or equals.
Electrical Specification
| Manufacturer Part Number | 24HS39-3008D |
| Motor Type | Unipolar/Bipolar |
| Step Angle | 1.8° |
| Holding Torque(Bipolar) | 4.0Nm(566oz.in) |
| Holding Torque(Unipolar) | 2.8Nm(397oz.in) |
| Rated Current(Bipolar Serial) | 2.12A |
| Rated Current(Bipolar Parallel) | 4.24A |
| Rated Current(Unipolar) | 3.0A |
| Phase Resistance(Bipolar Serial) | 2.8ohms |
| Phase Resistance(Bipolar Parallel) | 0.7ohms |
| Phase Resistance(Unipolar) | 1.4ohms |
| Recommended Voltage | 24-48V |
| Inductance(Bipolar Serial) | 12.0mH±20%(1KHz) |
| Inductance(Bipolar Parallel) | 3.0mH±20%(1KHz) |
| Inductance(Unipolar) | 3.0mH±20%(1KHz) |
Physical Specification
| Frame Size | 60 x 60mm |
| Body Length | 100mm |
| Shaft Diameter | ?8.0mm |
| Front Shaft Length | 24mm |
| Rear Shaft Length | 15mm |
| D-cut Length | 20mm |
| Number of Leads | 8 |
| Lead Length | 400mm |
| Weight | 1.6kg |
Resources
|
Connection
| Wire Color | RED | YEL | BLU | BLK | WHT | PUE | BRW | GRN |
| Board Connector | A | A- | C- | C | B | B- | D- | D |
SO-0388
Dual Shaft CNC Stepper Motor Nema 24 100mm 4Nm(566 oz.in) 24HS39-3008D
