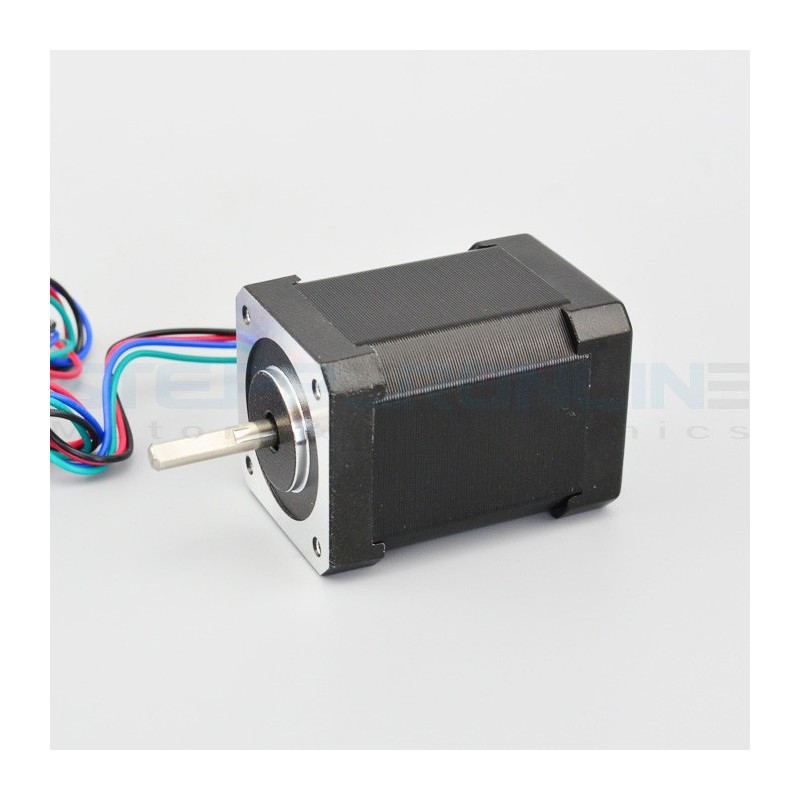

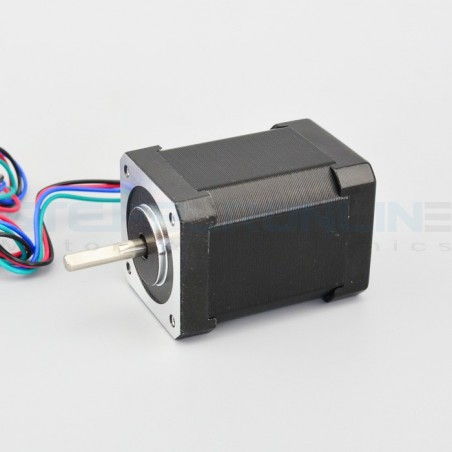

Nema 17 60Ncm(85oz.in) 0.64A Bipolar Stepper Motor 17HS24-0644S
Write your review
25,49 €
Tasse incluse
Nema 17 60Ncm(85oz.in) 0.64A Bipolar Stepper Motor 17HS24-0644S
Description
This is high torque Nema 17 stepper motor with 1.8° step angle (200 steps/revolution). Each phase draws 640mA, allowing for a holding torque of 60Ncm(85oz.in).
Electrical Specification
| Manufacturer Part Number | 17HS24-0644S |
| Motor Type | Bipolar Stepper |
| Step Angle | 1.8° |
| Holding Torque | 60Ncm(85oz.in) |
| Rated Current/phase | 0.64A |
| Phase Resistance | 15ohms |
| Recommended Voltage | 12-24V |
| Inductance | 13.2mH±20%(1KHz) |
Physical Specification
| Frame Size | 42 x 42mm |
| Body Length | 60mm |
| Shaft Diameter | ?5mm |
| Shaft Length | 24mm |
| D-cut Length | 15mm |
| Number of Leads | 4 |
| Lead Length | 500mm |
| Weight | 500g |
Connection
| Wire Color | Orange | Blu | Red | Yellow |
| Board Connector | A | C | B | D |
Resources
|
 |
Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor. |
