Nema 17 Bipolar Stepper 12v 0.4A 40Ncm(56.7oz.in) 17HS15-0404S
Description

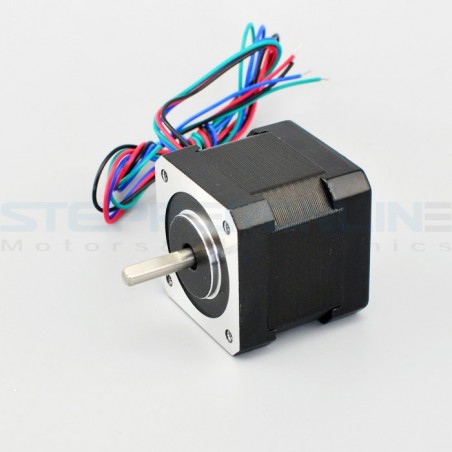

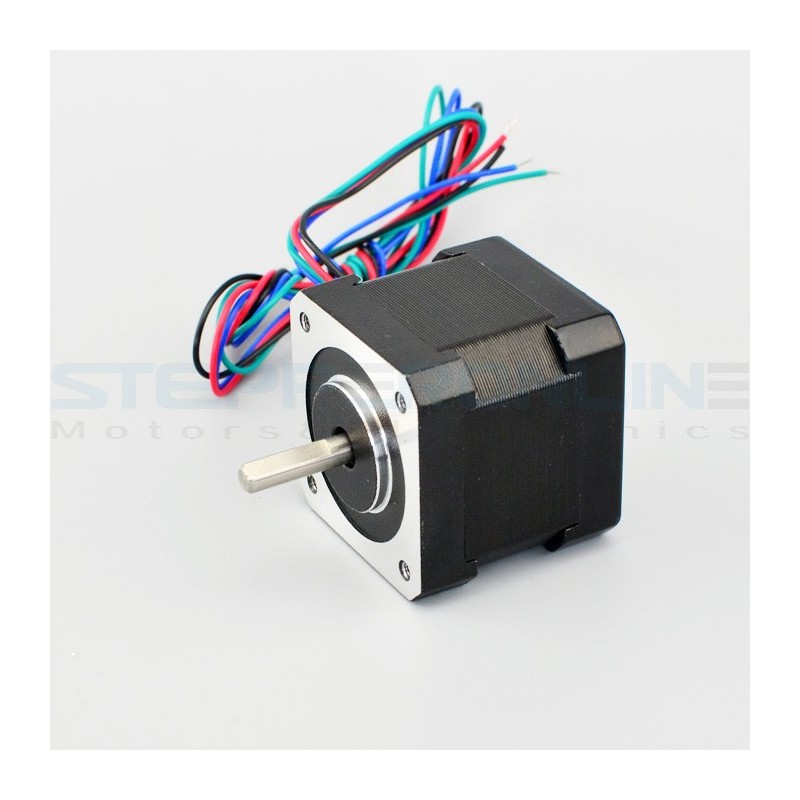

This is bipolar Nema 17 stepper motor with 1.8° step angle (200 steps/revolution). Each phase draws current 400mA at 12V, allowing for a holding torque of 40Ncm(56.6oz.in).
Electrical Specification
| Manufacturer Part Number | 17HS15-0404S |
| Motor Type | Bipolar Stepper |
| Step Angle | 1.8° |
| Holding Torque | 40Ncm(56.6oz.in) |
| Rated Current/phase | 0.4A |
| Phase Resistance | 30.0ohms |
| Recommended Voltage | 12-24V |
| Inductance | 58mH±20%(1KHz) |
Physical Specification
| Frame Size | 42 x 42mm |
| Body Length | 39mm |
| Shaft Diameter | ?5mm |
| Shaft Length | 24mm |
| D-cut Length | 15mm |
| Number of Leads | 4 |
| Lead Length | 500mm |
| Weight | 290g |
Connection
| Wire Color | Black | Red | Green | Blue |
| Board Connector | A | C | B | D |
Resources
- Full datesheet about 17HS15-0404S: OSM Datasheet
