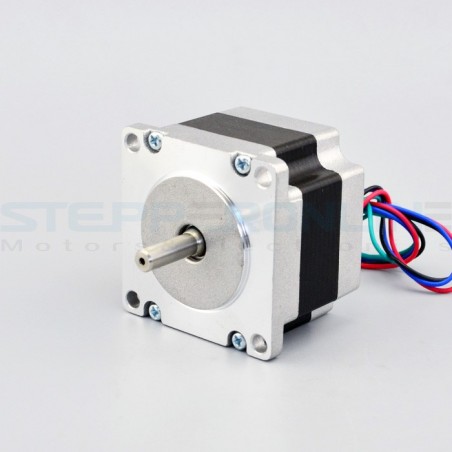

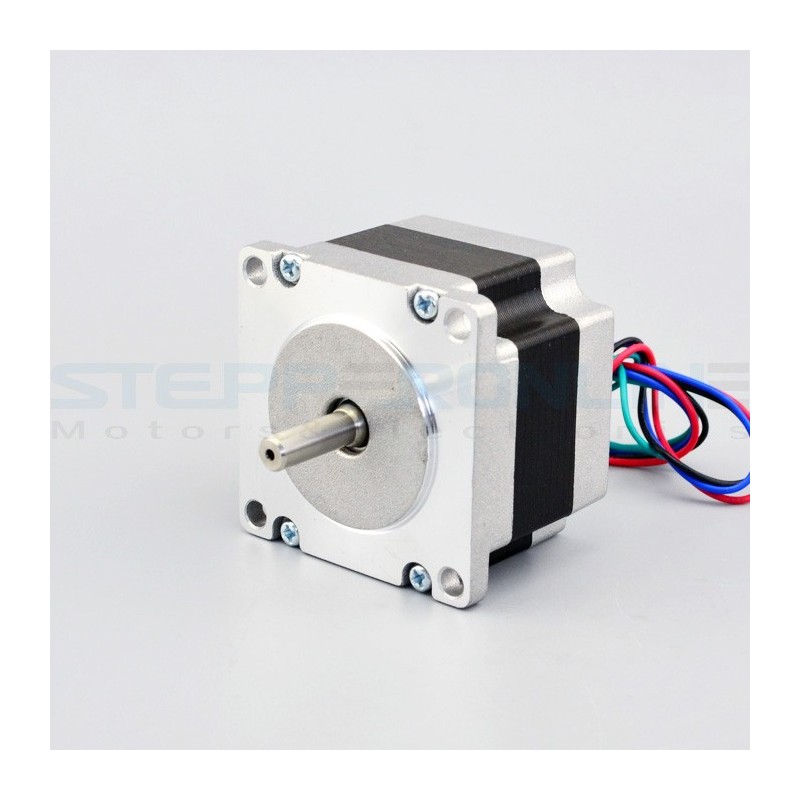

Nema 23 CNC Stepper Motor 0.88A 0.6Nm(85oz.in) 23HS16-0884S
Write your review
42,70 €
Tasse incluse
Nema 23 CNC Stepper Motor 0.88A 0.6Nm(85oz.in) 23HS16-0884S
Description
This bipolar Nema 23 stepper motor with 1.8°step angle (200 steps/revolution). Each phase draws 880mA, allowing for a holding torque of 0.6Nm(85oz.in).
Electrical Specification
| Manufacturer Part Number | 23HS16-0884S |
| Motor Type | Bipolar Stepper |
| Step Angle | 1.8° |
| Holding Torque | 0.6Nm(85oz.in) |
| Rated Current/phase | 0.88A |
| Phase Resistance | 7.5ohms |
| Recommended Voltage | 24-48V |
| Inductance | 21.7mH±20%(1KHz) |
Physical Specification
| Frame Size | 57 x 57mm |
| Body Length | 42mm |
| Shaft Diameter | ?6.35mm |
| Shaft Length | 20.6mm |
| D-cut Length | 15mm |
| Number of Leads | 4 |
| Lead Length | 500mm |
| Weight | 500g |
Resources
- Full datesheet about 23HS16-0884S: OSM Datasheet
Connection
| Wire Color | Black | Green | Red | Blue |
| Board Connector | A | C | B | D |
