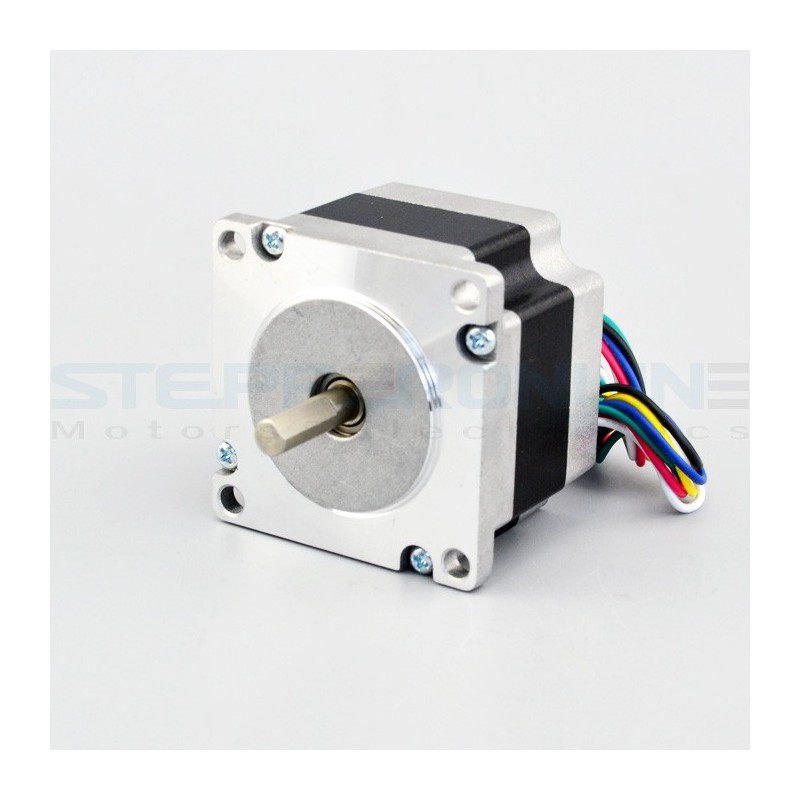

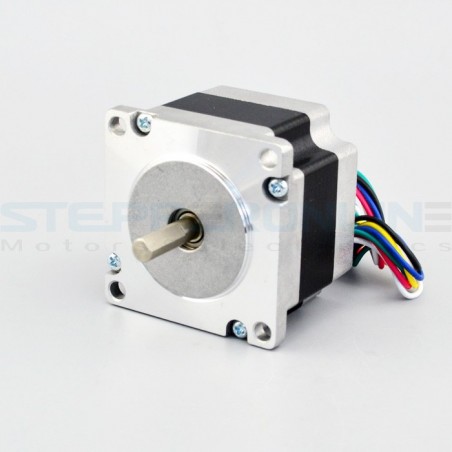

Nema 23 Unipolar Stepper Motor 1A 0.39Nm(55oz.in) 23HS16-1006S

24,40 €
Tasse incluse

Nema 23 Unipolar Stepper Motor 1A 0.39Nm(55oz.in) 23HS16-1006S

Quantità
Add to Compare
Add to Wishlist

Description

This unipolar Nema 23 stepper motor with 1.8°step angle (200 steps/revolution). Each phase draws 1.0A, allowing for a holding torque of 0.39Nm(55oz.in).


Electrical Specification


Manufacturer Part Number 23HS16-1006S
Motor Type Unipolar Stepper
Step Angle 1.8°
Holding Torque 0.39Nm(55oz.in)
Rated Current/phase 1.0A
Phase Resistance 5.7ohms
Recommended Voltage 24-48V
Inductance 5.4mH±20%(1KHz)

Physical Specification


Frame Size 57 x 57mm
Body Length 41mm
Shaft Diameter ?6.35mm
Shaft Length 20.6mm
D-cut Length 15mm
Number of Leads 6
Lead Length 500mm
Weight 470g

Connection


Wire Color Black Yellow Green Red White Blue
Board Connector A A C C B B D D

Resources



warning Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.

Related Products


  • Stepper Motor Driver
    For each stepper motor, it should work with a stepper motor driver, below is a matched stepper motor driver:
    • ST-6600: Economical stepper driver, Output current 0.50 - 4.0A, Input voltage 12V - 45VDC, Max. step resolution 1/16.
    • ST-7128: Economical stepper driver, Output current 0.60 - 3.0A, Input voltage 10V - 32VDC, Max. step resolution 1/128.
    • M542T: High performance stepper driver, Output current 1.5 - 4.5A, Input voltage 24-50VDC, Max. step resolutions 1/256, ideal solution for applications that require low-speed smoothness.
  • Stepper Motor Power Supply
    Recommended Driving Voltage is 12 - 48VDC.
  • Motor Mounting Bracket
    This motor mounting bracket can match any standard Nema 23 stepper motor and planetary geared stepper motor.
    Nema 23 Motor Mounting Bracket

Custom Options


  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
SO-0106
