Description

1. Feature

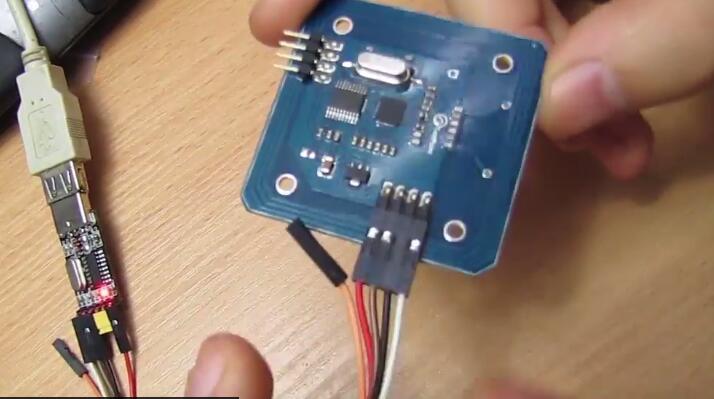

1) MF RC522 is applied to 13.56MHz contactless card reader communication chips which is a member of the high level of integration - NXP. It features with low-voltage, low-cost, small size and non-contact chip card reader which is a good choice for smart meters and portable handheld devices developed.

2) MF RC522 using advanced modulation and demodulation concept completely integrated in all types of passive 13.56MHz contactless communication methods and protocols.
Support ISO14443A multilayer applications. The transmitter portion of its internal communications can drive the reader antenna and ISO 14443A/MIFARE cards and answering machine, no other circuits. The receiver part provides a robust and effective demodulation and decoding circuitry for processing signals ISO14443A compatible transponders. The digital part handles ISO14443A framing and error detection (Parity & CRC). In addition, it supports fast CRYPTO1 encryption algorithm used to verify the MIFARE products. MFRC522 support MIFARE? Higher-speed non- contact communication, two-way data transfer rates up to 424kbit/s.

3) As a new member of the highly integrated 13.56MHz card reader series chip family, MF RC522 MF RC500 and MF RC530 and there are many similarities, but also have many other features and differences. It is the communication between the host and the serial communication using fewer connections, and can be based on different user needs to select one mode SPI, I2C or serial UART (similar to RS232), helps to reduce the connection, reducing the volume of PCB board and reduce costs.

2. Applications

1) MF RC522 applicable to all kinds based on ISO / IEC 14443A standard and require application of low-cost, small size, high performance and power of a single non-contact communication.
2) Meter reading
3) On-board unit
4) Public transport terminal
5) The portable handheld device
6) Contactless public phones

3. Description

• Model:MIFARE RC522
• Sleep Current: <80uA
• Peak current: <30mA
• Operating Frequency: 13.56MHz
• Read Range: 0～45mm
• Interface: UART TTL
• Baud Rate: 115200
• Data transfer rate: Maximum10Mbit/s

• Size: 50mm×50mm
• Ambient operating temperature: Celsius-20—80
• Storage Temperature: Celsius-40—85
• Humidity: Relative Humidity 5%—95%
• Agreement: Compliance with ISO14443A standard, support Mifare1 S50、S70

Note:
Try not to be placed between the card reader and the reader when any metal objects. So as not to affect the results.

Download Material

Code for Arduino
