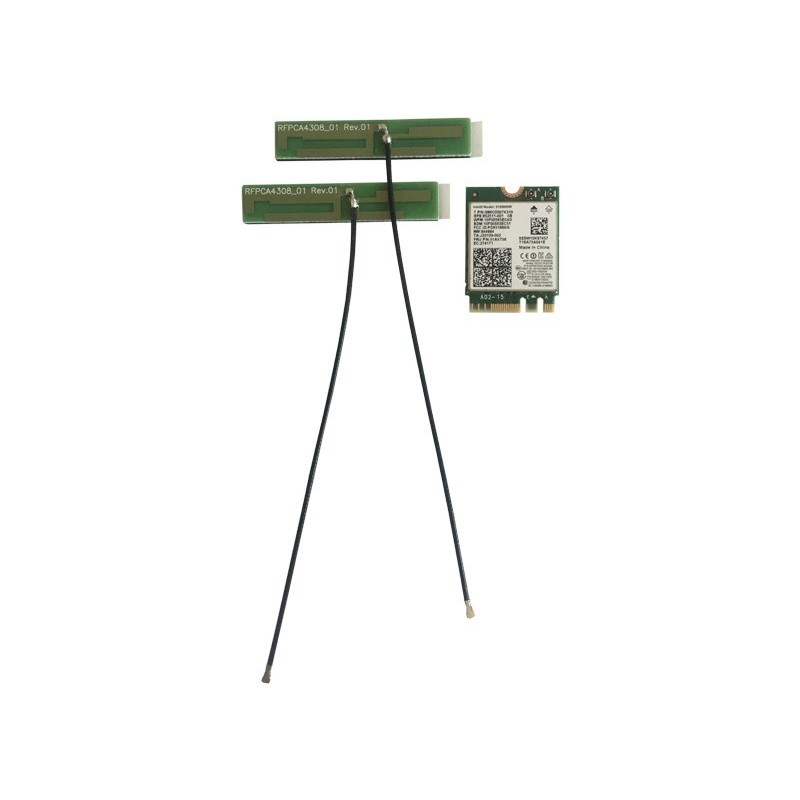

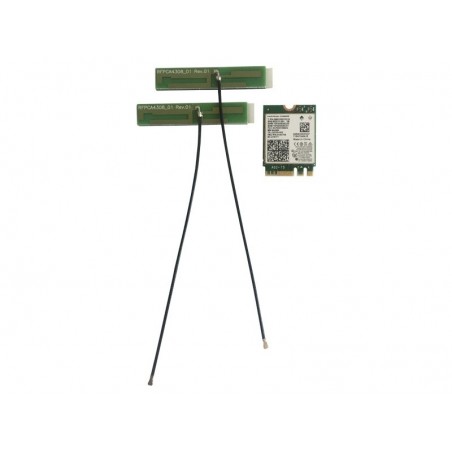

M.2 Wi-Fi Intel dual band ac Wi-Fi + BT 4.2 5ghz + antenna adhesive

• Intel® Dual Band Wireless Wi-Fi kit w/ 3168.NGWG AC and Bluetooth 4.2 module
• Dimensions: 4.9 x 3.5 x 0.4 inches
• Weight: 8.5g (0.3 oz)

For more info about this WiFi/BT module you can check the datasheet from the Intel website.

Intel® Dual Band Wireless Wi-Fi AC and Bluetooth 4.2 module (Intel® AC3168) was released in 2016 so we suggest to use a recent distribution to find the latest drivers already installed. If you are using a Linux distribution you need at least the v4.6 of the Linux Kernel to make this module work properly.

You need both the antennas to make the module works properly. Connect an antenna to the Main A connector to enhance Wi-Fi signal. Connect an antenna to the Aux B connector to enhance Bluetooth and BluetoothLE signal.

Screws/Spacers NOT included. The screws/Spacers are included only buying a UDOO X86 Board. The required Screws/Spacers are the following:

• M3x8mm Flat head Screw;
• 2mm Round Spacer;
• 0.5mm Flat washers;
• M3 Hex Nut.

Buy NOW the Screws and spacers kit for M.2 accessories mounting.

For more info visit our Docs X86.
